Differential Assembly: Disassembly

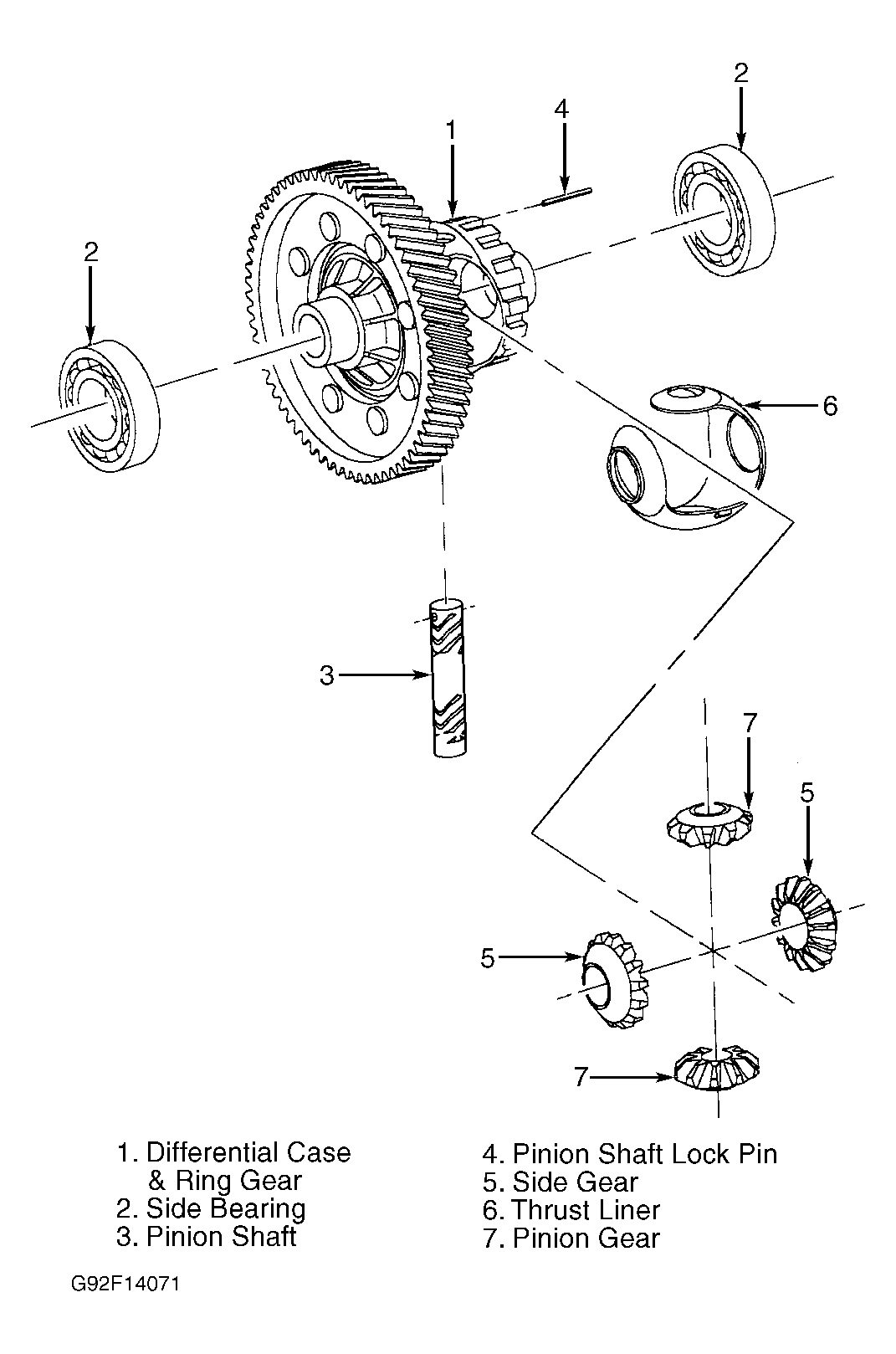

Drive out pinion shaft lock pin from differential case and slide out pinion shaft. Remove pinion gears by rotating out of housing. See Figure . Remove side gears and thrust liner from case. Remove differential side bearings with 2-jaw puller. Shield bearing to protect against bearing breakage.
