Wiring Diagrams

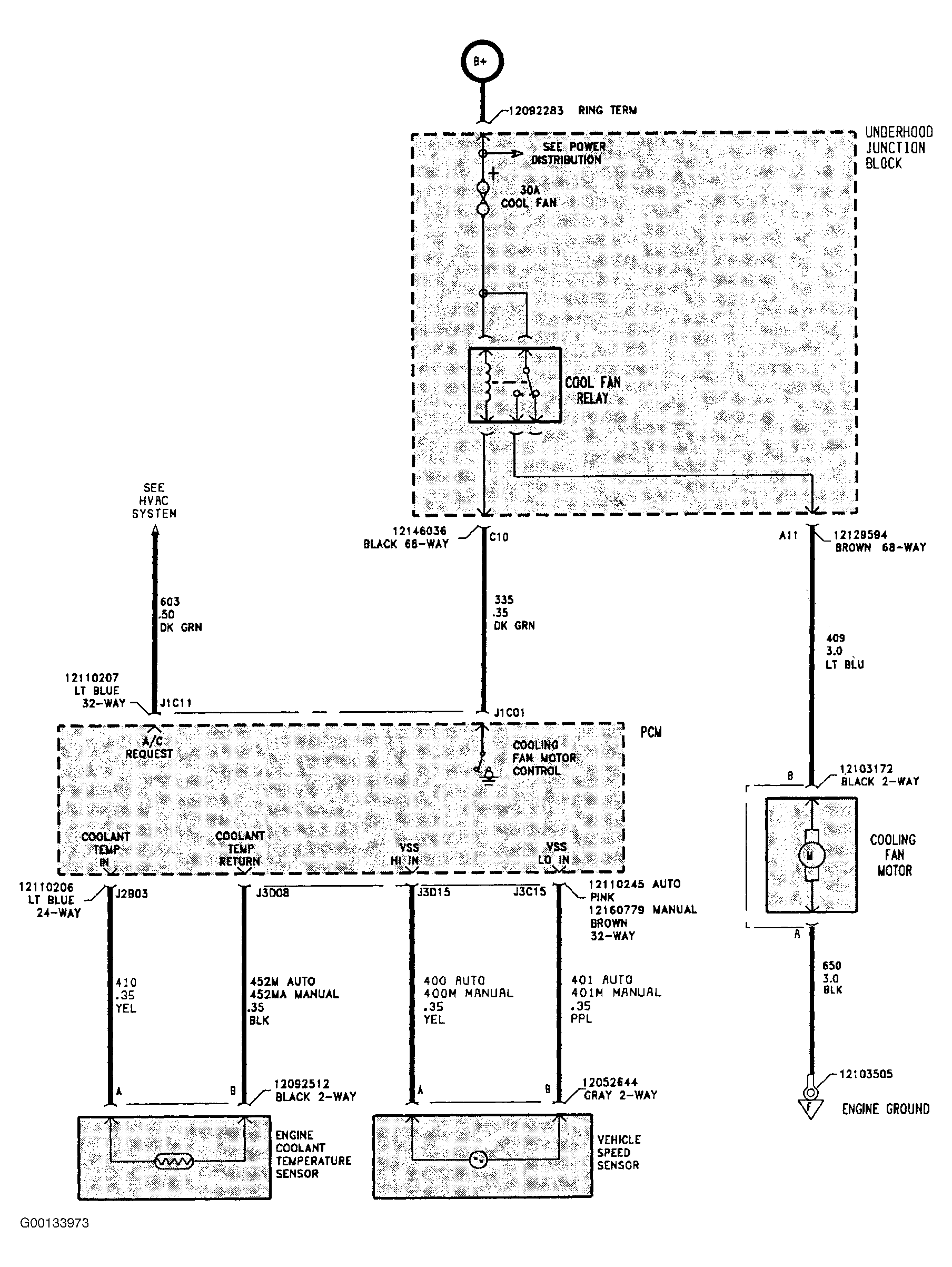

Fig 1: Engine Cooling Fan Wiring Diagram (1997-99)

G00133973

Courtesy of GENERAL MOTORS CORP.
