Passenger-Side Inflator Module: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1996 Saturn SW2, 1996 Saturn SW1, 1996 Saturn SL2, 1996 Saturn SL1, and 1996 Saturn SL. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Disconnect passenger air bag harness.
  2. Remove glove box door stops and let glove box door hang down. Remove screws from glove box compartment and striker. Remove glove box assembly by pulling rearward at clip locations.
  3. Remove screws and passenger side inflator module. See Fig 1 .

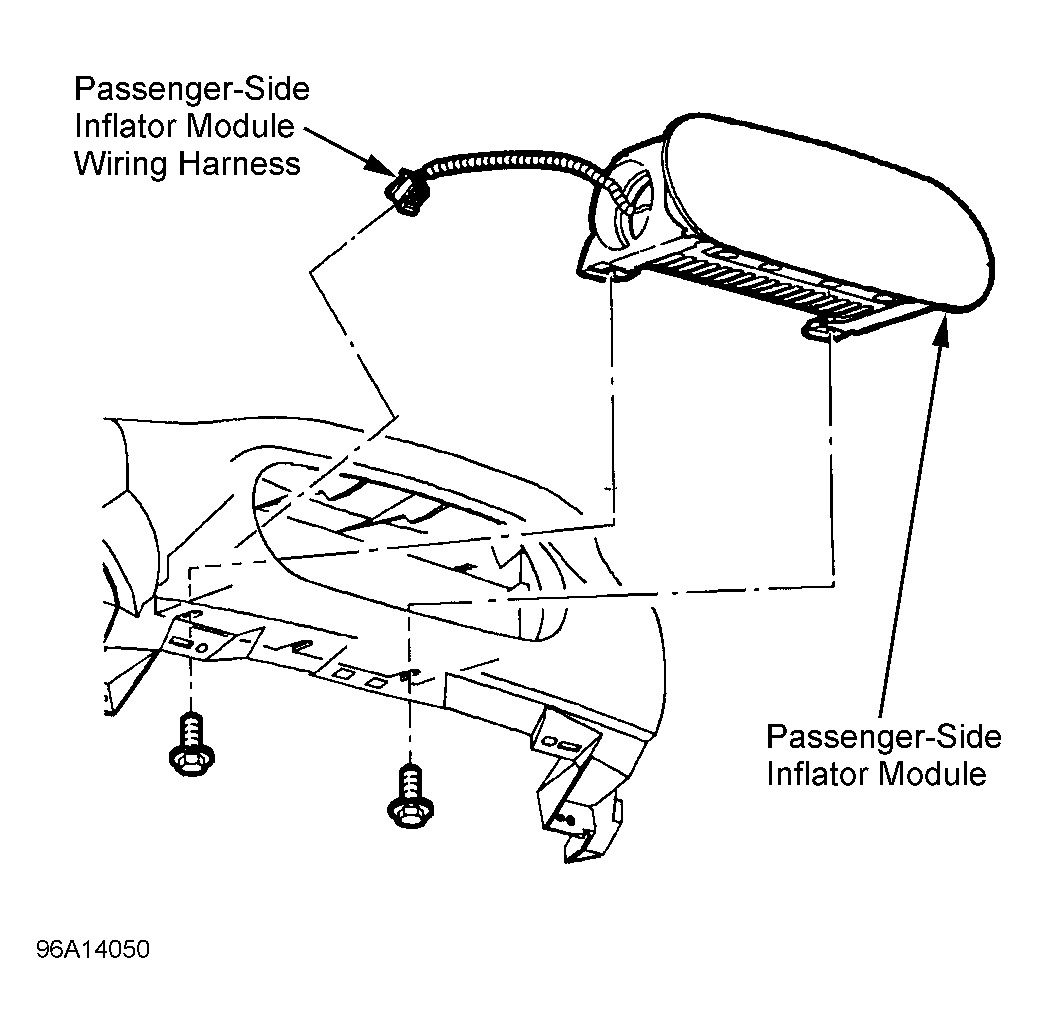

Fig 1: Removing Passenger-Side Inflator Module
G96A14050Courtesy of GENERAL MOTORS CORP.
