Saturn
>>
1997
>>
SL
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Identification
>>
Starter Relay
Starter Relay

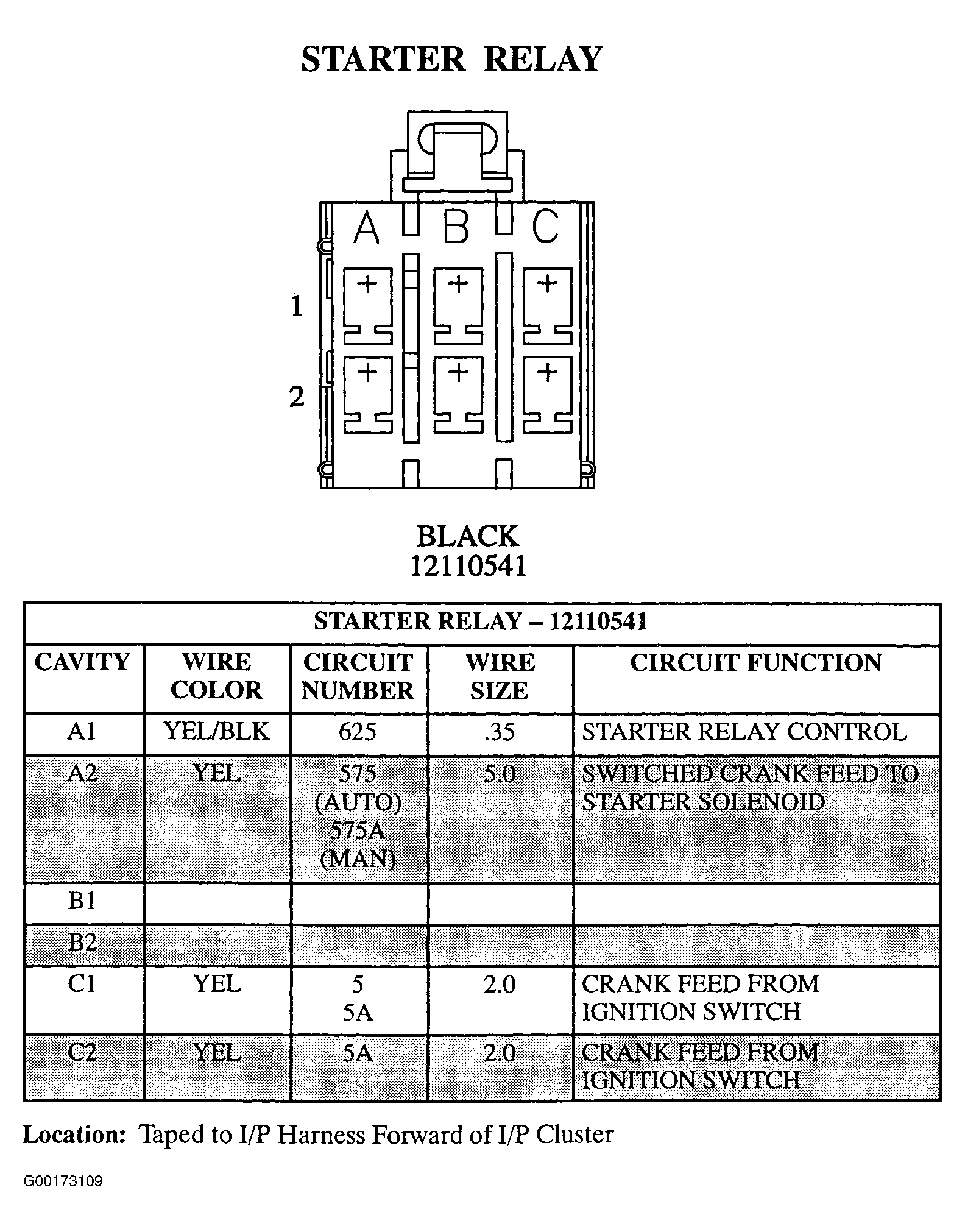

Fig 1: Starter Relay - 6-Pin Connector (12110541) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
