Home >> Saturn >> 1997 >> SL >> Repair and Diagnosis >> Engine Performance >> System >> Connector Identification >> Oil Pressure Switch

Oil Pressure Switch

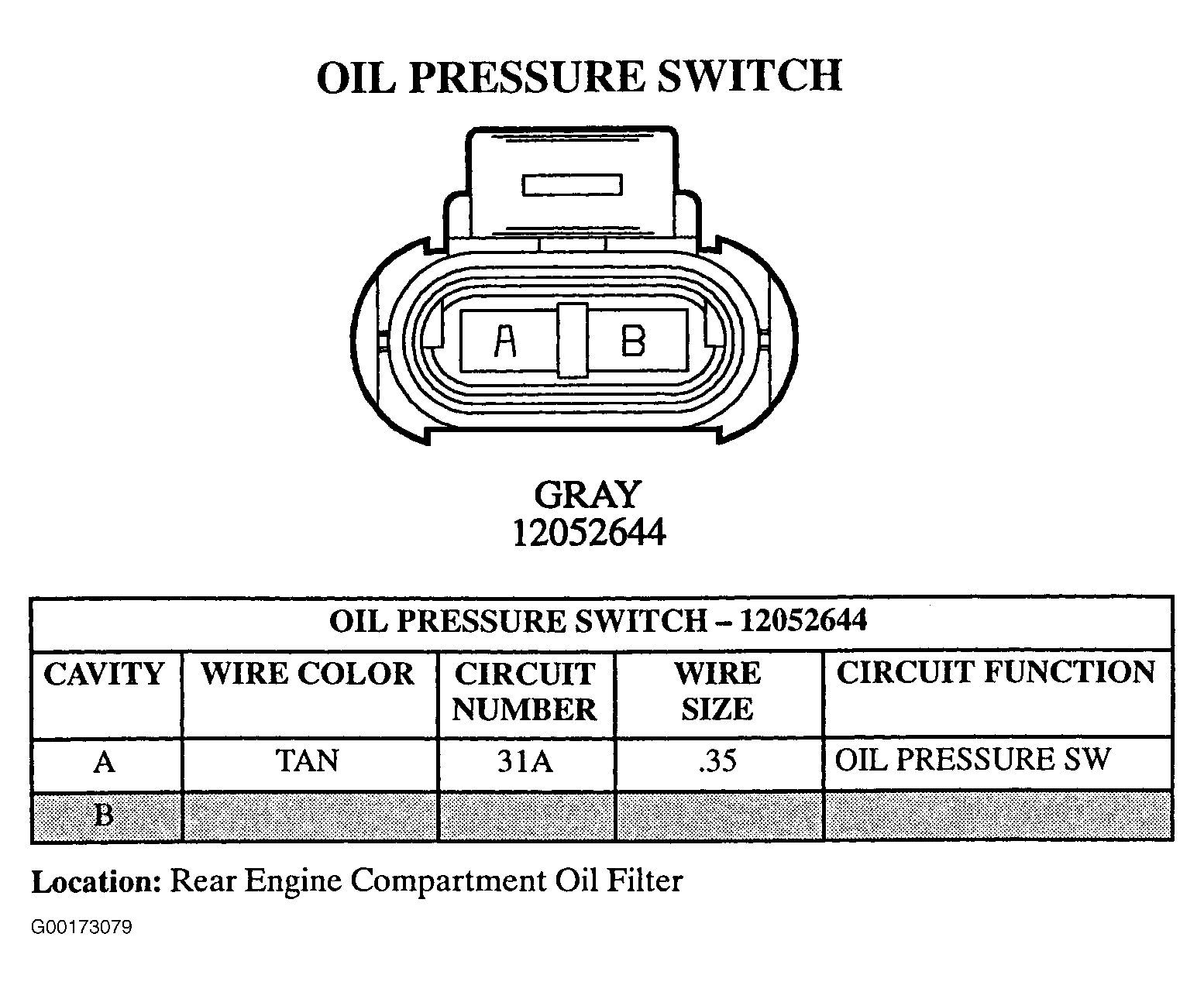

Fig 1: Oil Pressure Switch - 2-Pin Connector (12052644) - Gray

G00173079

Courtesy of GENERAL MOTORS CORP.
