Connector Identification
>>
Knock Sensor
Knock Sensor

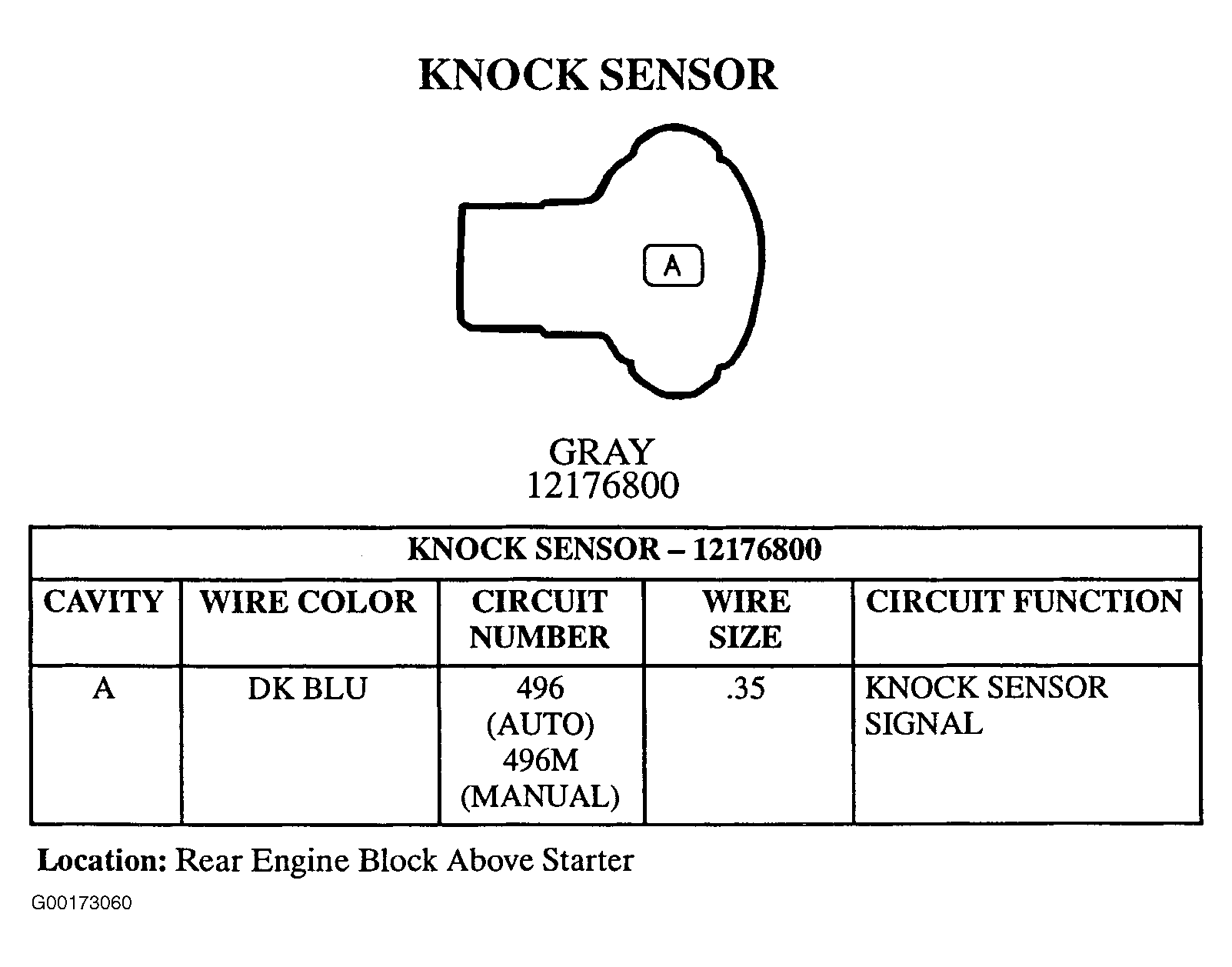

Fig 1: Knock Sensor - 1-Pin Connector (12176800) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
