Connector Identification
>>
Headlamp Connectors
>>
Headlamp Lo Beams
Headlamp Lo Beams

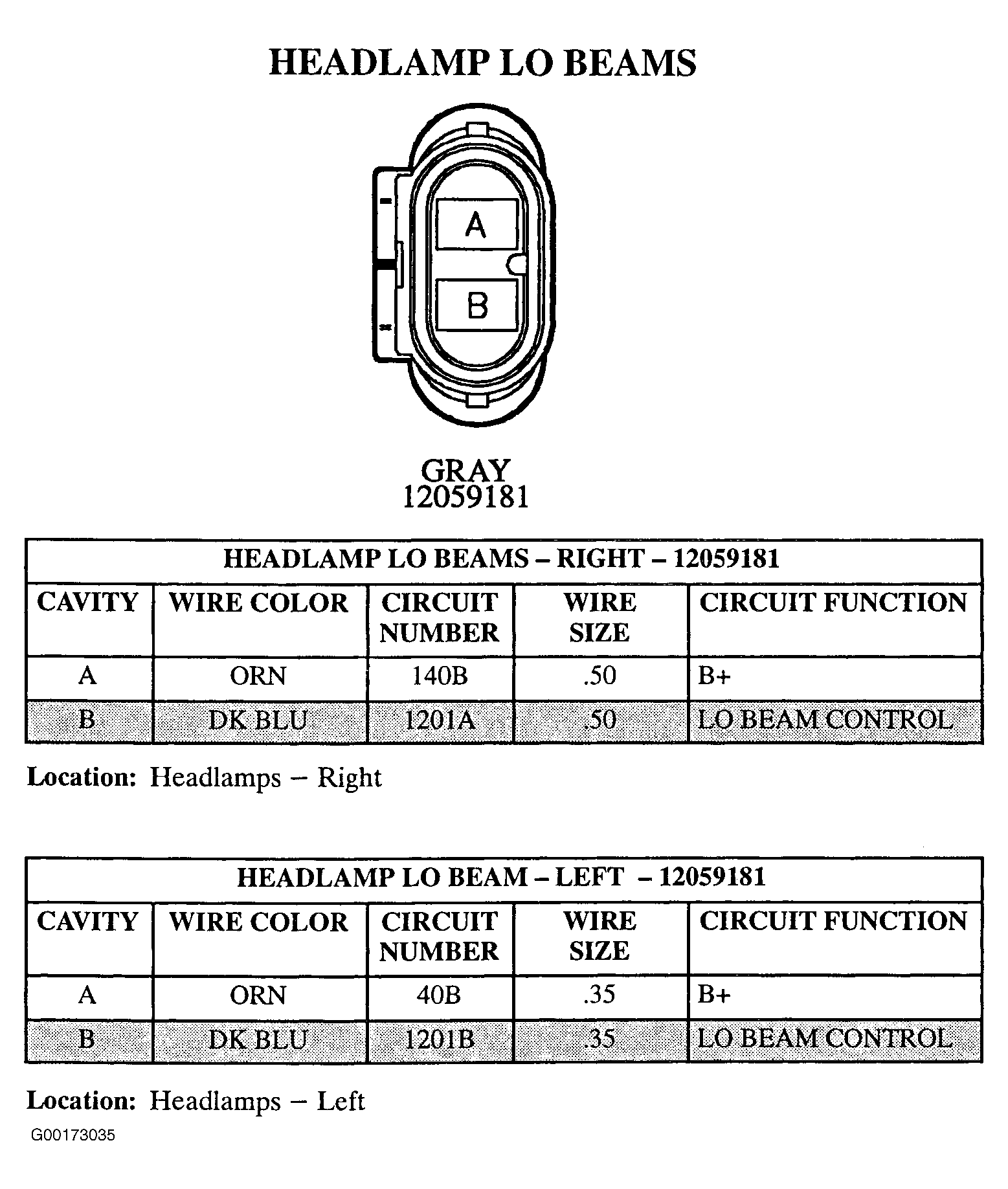

Fig 1: Headlamp Lo Beams - 2-Pin Connector (12059181) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
