Removal Procedure

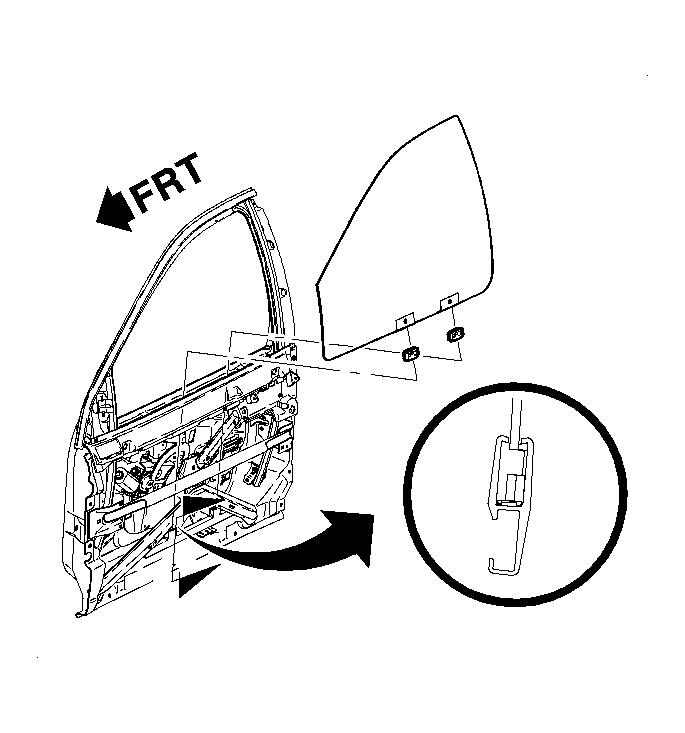

Fig 1: Front Side Door Window (Sedan/Wagon)
GM861810Courtesy of GENERAL MOTORS COMPANY
  1. Remove the door trim panel. Refer to Front Side Door Trim Panel Replacement . The outer door panel is removed in the illustration to show the location.
  2. Partially remove the water deflector to access the openings in the door structure.
  3. Lower the door window for access to the window insulators (slide clips).
  4. Depress the retaining clips on the window insulators (slide clips) and slide the sash from the window.
  5. Rotate the window, push up, and then remove from the door.
