Lever Control Switches
NOTE:
For cruise control switch testing, see CRUISE CONTROL SYSTEM
article. For wiper/washer switch testing, see WIPER/WASHER SYSTEM - FRONT
article or see WIPER/WASHER SYSTEM - REAR
for wagon models.
Turn ignition off. Using DVOM, check continuity between specified terminals. See appropriate CONNECTOR CONTINUITY TEST table. See Fig 1, Fig 2 or Fig 3 . If continuity does not exist for selected switch position, replace switch.

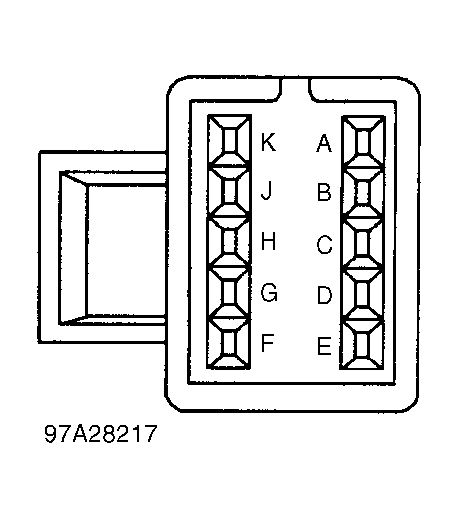

HEADLIGHT SWITCH CONNECTOR CONTINUITY TEST
| Switch Position | Continuity Between Terminals | ||
|---|---|---|---|
| Headlight Switch Off | |||
| Low Beam | |||
| Flash-To-Pass Switch Off Or On | "C", "E" & "G" | ||
| High Beam | |||
| Flash-To-Pass Switch Off Or On | "C", "E" & "G" | ||
| Headlight Switch In Park Position | |||
| Low Beam | |||
| Flash-To-Pass Switch Off | "F" & "K" | ||
| Flash-To-Pass Switch On | "C", "E" & "G"; "F" & "K" | ||
| High Beam | |||
| Flash-To-Pass Switch Off | "F" & "K" | ||
| Flash-To-Pass Switch On | "C", "E" & "G"; "F" & "K" | ||
| Headlight Switch On | |||
| Low Beam | |||
| Flash-To-Pass Switch Off | "A" & "C; "E" & "G"; "F" & "K" | ||
| Flash-To-Pass Switch On | "A", "C", "E" & "G"; "F" & "K" | ||
| High Beam | |||
| Flash-To-Pass Switch Off | "C", "E" & "G"; "F" & "K" | ||
| Flash-To-Pass Switch On | "C", "E" & "G"; "F" & "K" | ||

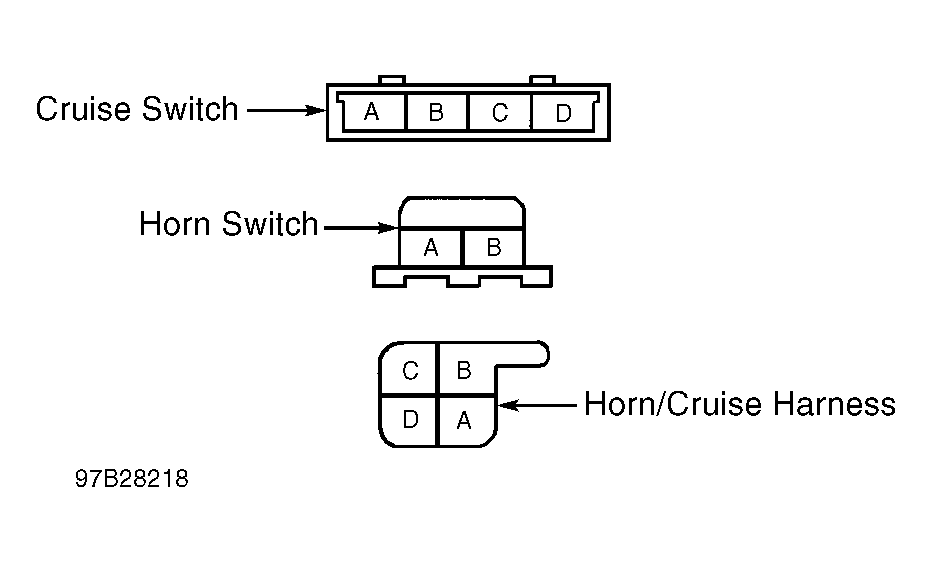

CRUISE & HORN SWITCH CONNECTORS CONTINUITY TEST
| Cruise Switch Terminal | Horn Switch Terminal | Horn/Cruise Harness Terminal |
|---|---|---|
| "D" | - | "D" |
| "B" | - | "C" |
| "A" | - | "B" |
| " | "A" | "A" |
| "C" | "B" | " |

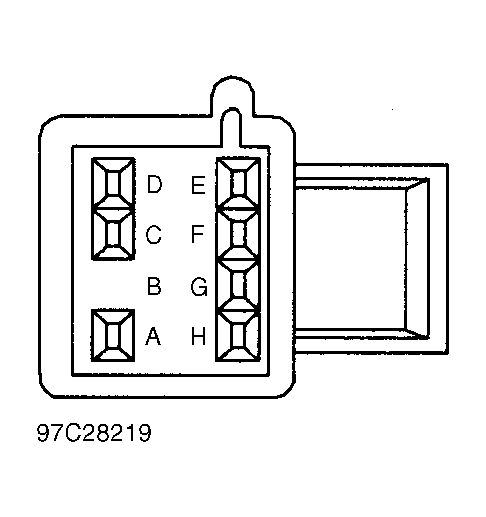

TURN/HAZARD SWITCH CONNECTOR CONTINUITY TEST
| Switch Position | Continuity Between Terminals | |
|---|---|---|
| Hazard Switch Off | ||
| Turn Lever Switch Off | "E", "F" & "H" | |
| Turn Lever Switch Left | "A" & "D"; "E", "F" & "H" | |
| Turn Lever Switch Right | "C" & "D"; "E", "F" & "H" | |
| Hazard Switch On | ||
| Turn Lever Switch Off | "A", "C" & "D"; "E", "G" & "H" | |
| Turn Lever Switch Left | "A", "C" & "D"; "E", "G" & "H" | |
| Turn Lever Switch Right | "A", "C" & "D"; "E", "G" & "H" | |
