Sunroof To Body Inline - Sunroof Side Connector

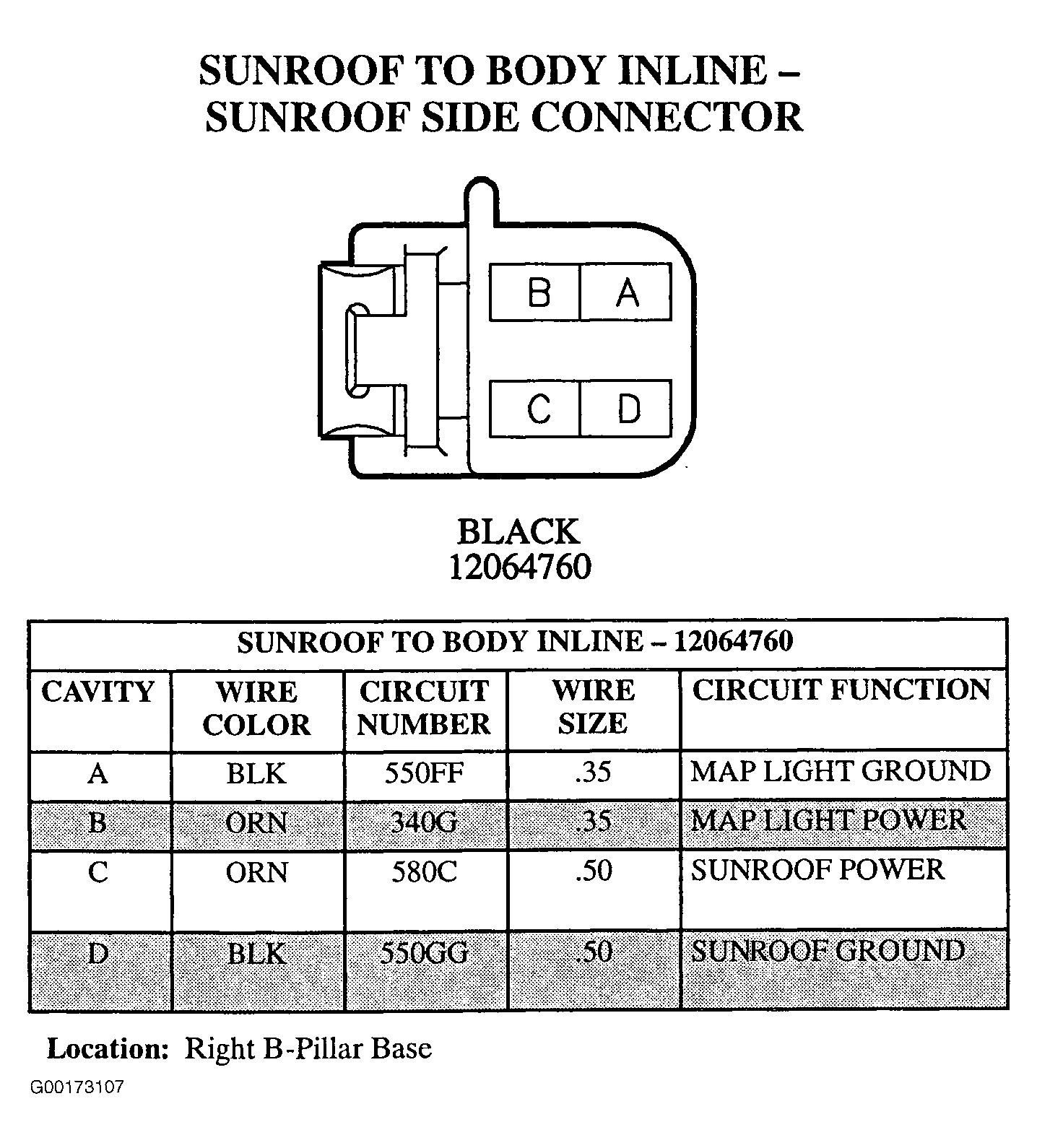

Fig 1: Sunroof To Body Inline - Sunroof Side Connector - 4-Pin Connector (12064760) - Black

G00173107

Courtesy of GENERAL MOTORS CORP.
