Stop/Tail/Back-Up/Turn/Marker Lamp Inline
>>
Stop/Tail/Back-Up/Turn/Marker Lamp Inline (1ST Design)
Stop/Tail/Back-Up/Turn/Marker Lamp Inline (1ST Design)

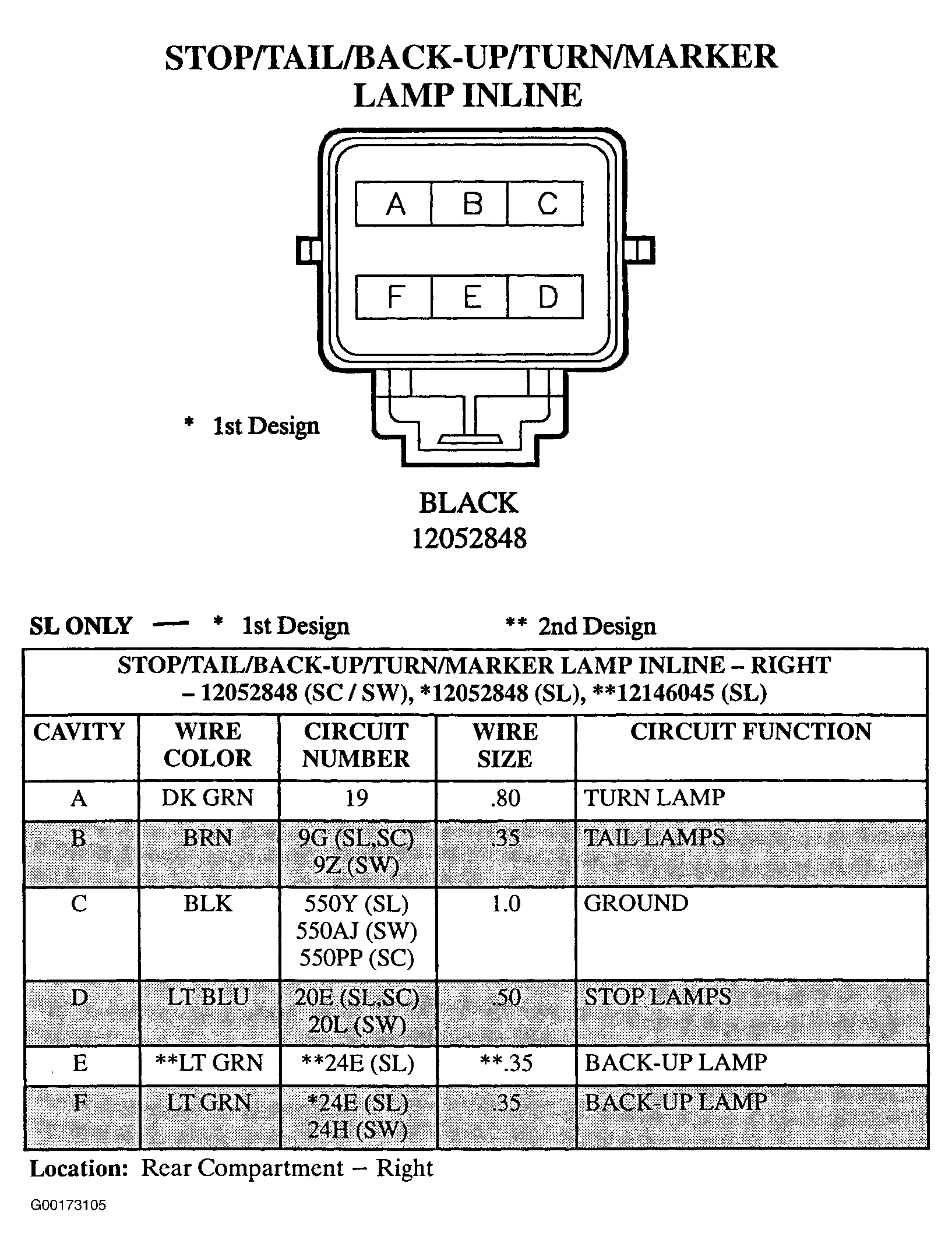

Fig 1: Stop/Tail/Back-Up/Turn/Marker Lamp Inline (1st Design) - 6-Pin Connector (12052848) - Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
