Connector Identification
>>
Liftgate (Wagon Only)
>>
Liftgate Release Motor - Wagon
Liftgate Release Motor - Wagon

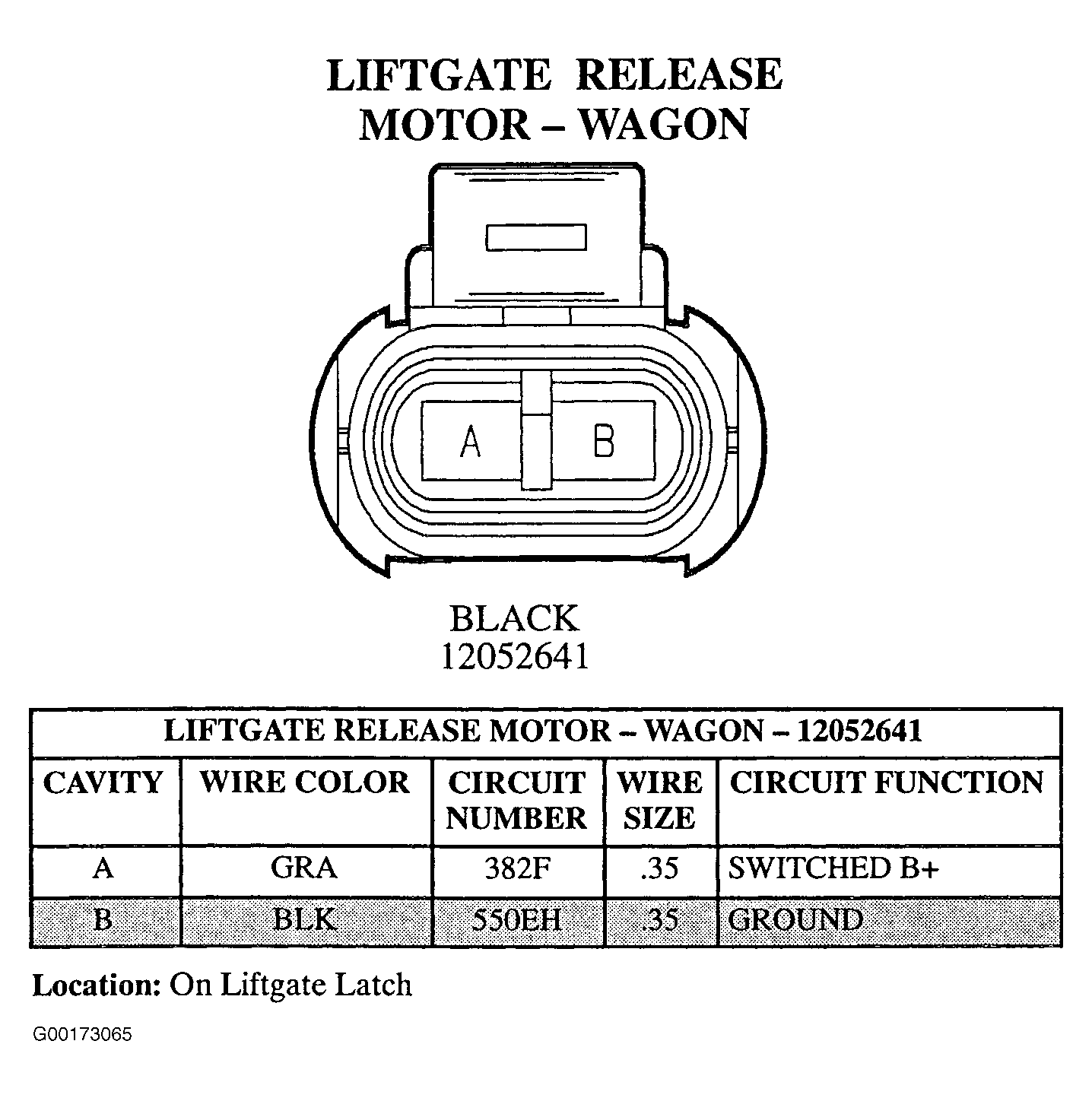

Fig 1: Liftgate Release Motor (Wagon) - 2-Pin Connector (12052641) - Black
Courtesy of GENERAL MOTORS CORP.
