Connector Identification
>>
Turbine Shaft Speed Sensor
Turbine Shaft Speed Sensor

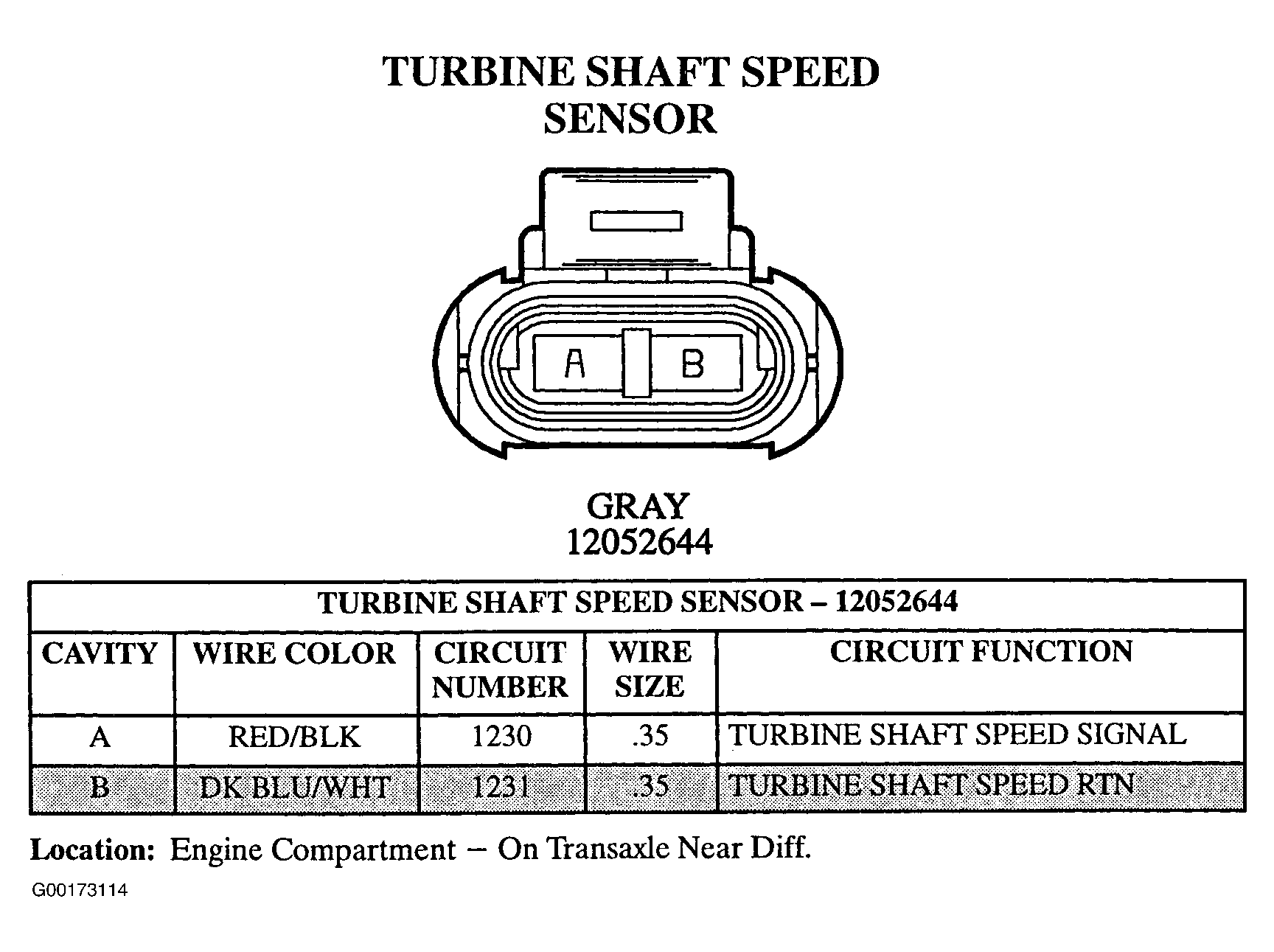

Fig 1: Turbine Shaft Speed Sensor - 2-Pin Connector (12052644) - Gray
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
