Home >> Saturn >> 1997 >> SC1 Automatic >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Connector Identification >> "PRNDL" Gear Indicator Lamp

"PRNDL" Gear Indicator Lamp

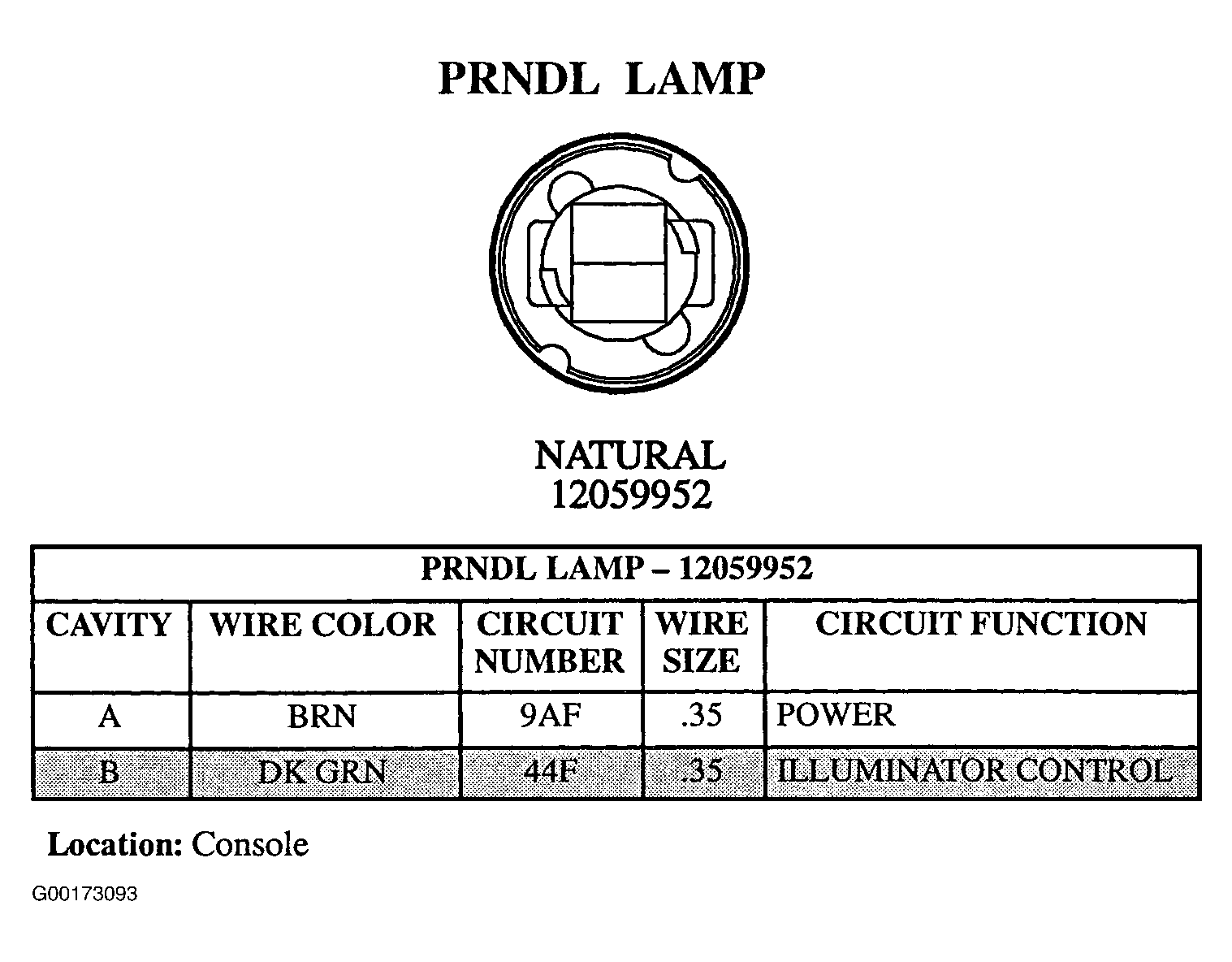

Fig 1: PRNDL Lamp - 2-Pin Connector (12059952) - Natural

G00173093

Courtesy of GENERAL MOTORS CORP.
