Power Mirror Switch Continuity Check

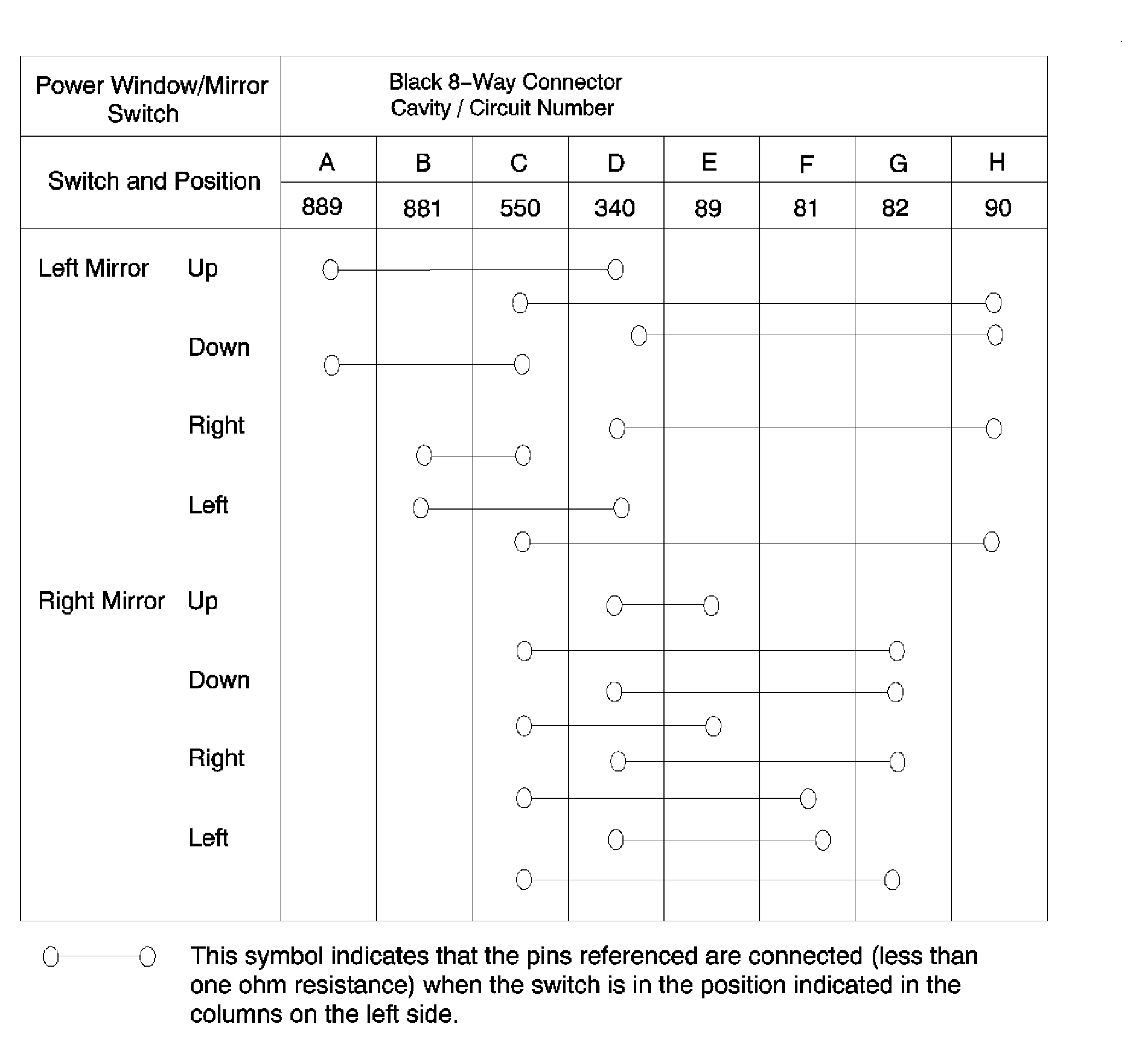

Fig 1: Power Mirror Switch Continuity Check

GM876059

Courtesy of GENERAL MOTORS COMPANY
