Passenger Compartment Discriminating Sensor: Removal

WARNING: This page is about a different car, the 1995 Pontiac Firebird and 1995 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM.
Passenger compartment discriminating sensor is located under instrument panel, to right of steering column. Remove CPA clip and disconnect electrical connector. Remove passenger compartment discriminating sensor bolts and sensor. See Fig 1 .

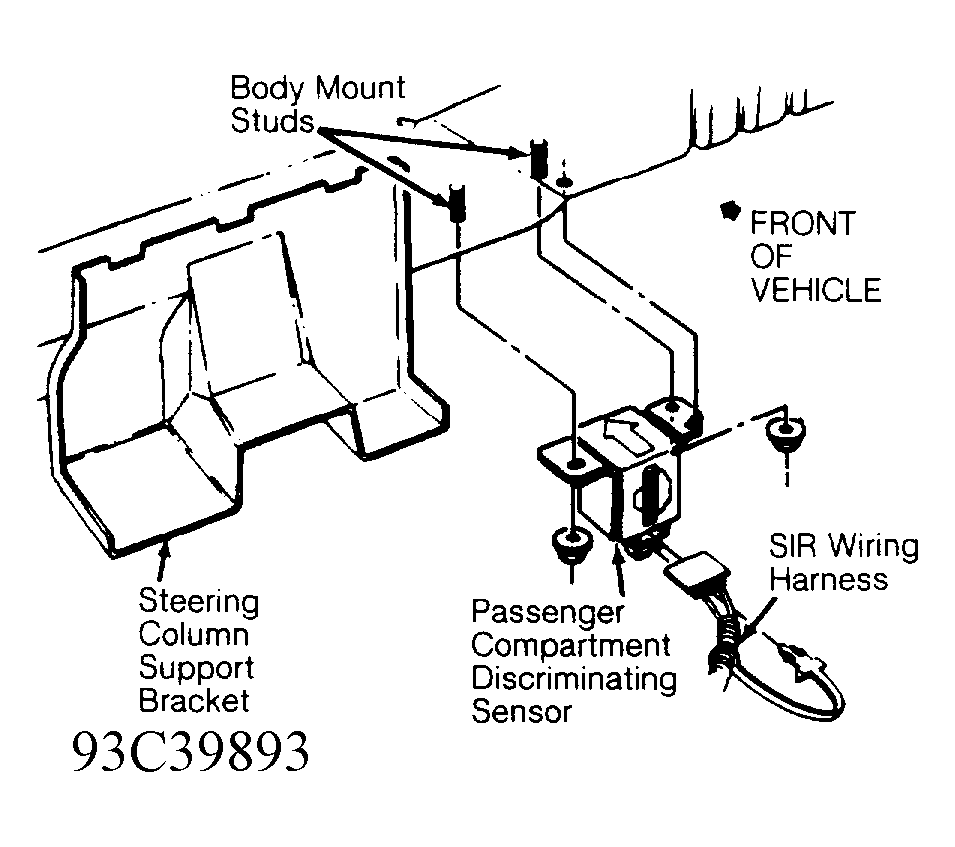

Fig 1: Removing Passenger Compartment Discriminating Sensor

Courtesy of GENERAL MOTORS CORP.
