Chime Module: Removal

  1. Remove driver's side close-out panel to expose I/P junction block.
  2. Press lock tab on the bottom side of the chime module to release connector from I/P chime module. See Fig 1 .
  3. Carefully pull out chime module.

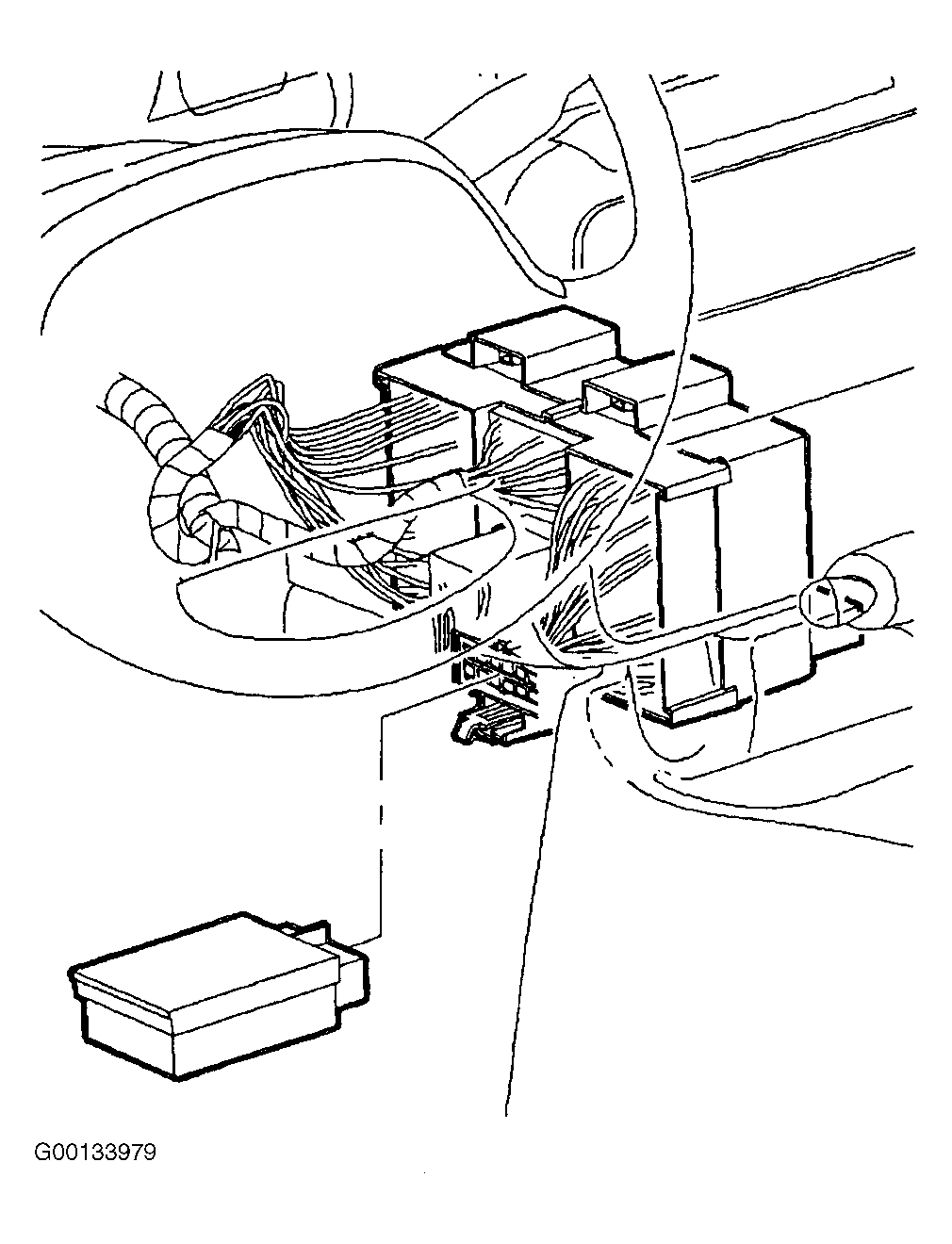

Fig 1: Removing Chime Module
G00133979Courtesy of GENERAL MOTORS CORP.
