Diagnostic Aids

Check terminal tightness at PCM and ABS controller connectors. If DTC P1602 is present, traction control will be disabled.

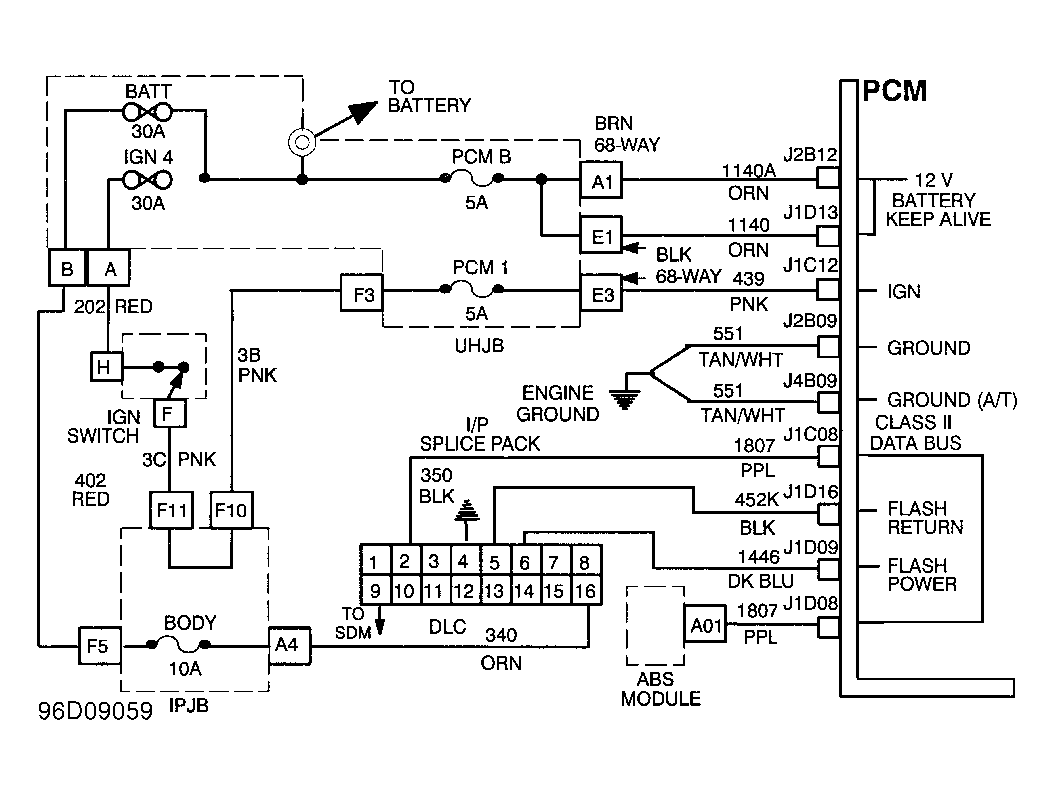

Fig 1: DTC P1602 Schematic

G96D09059
