Removal (Passenger-Side)

WARNING: This page is about a different car, the 1995 Pontiac Sunfire and 1995 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM.
  2. Remove instrument panel upper trim pad. Unplug CPA clip and electrical connector from passenger inflator module jumper. Remove fasteners and inflator. See Fig 1 .

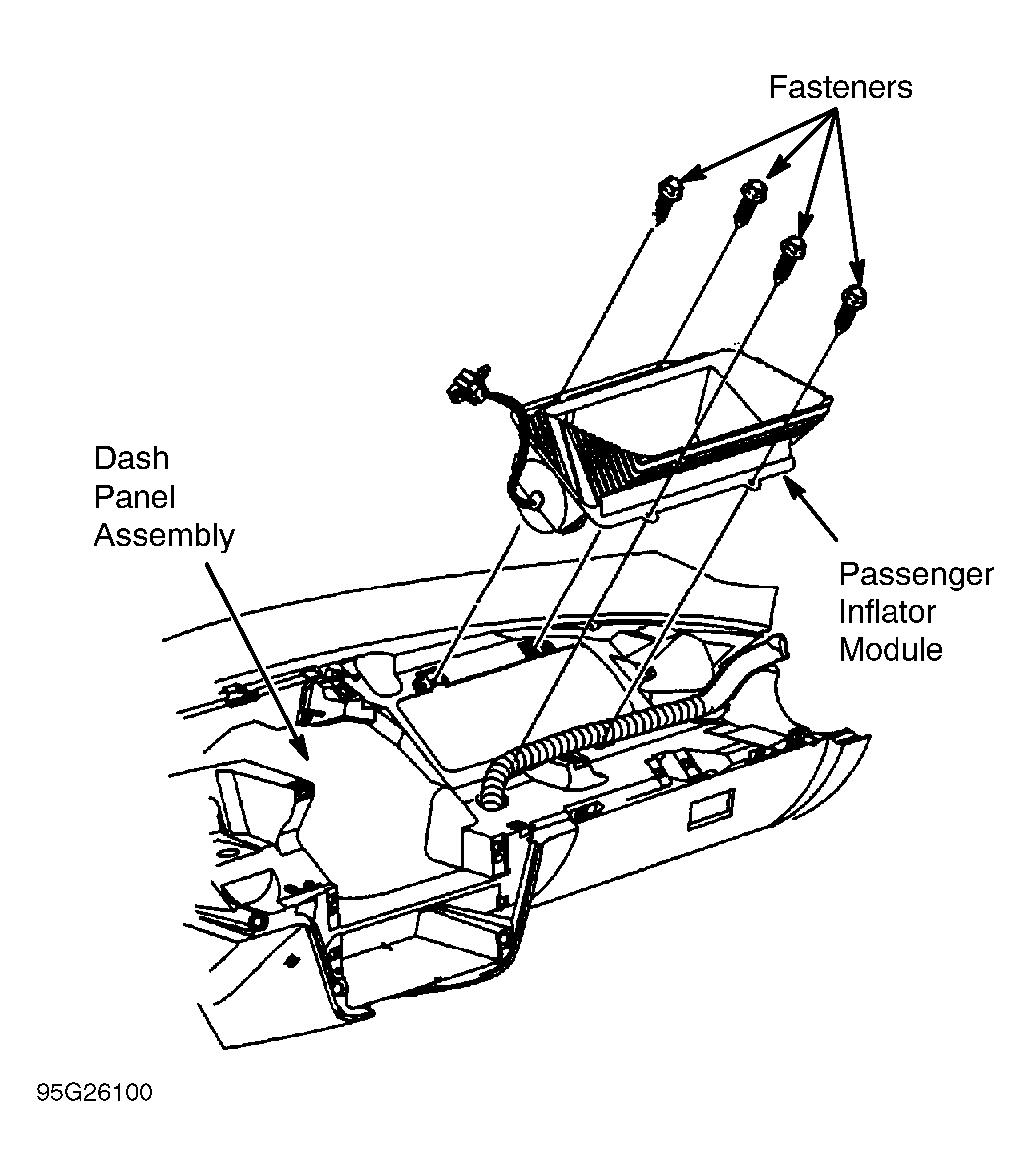

Fig 1: Removing Passenger Inflator Module
G95G26100Courtesy of GENERAL MOTORS CORP.
