Diagnostic Aids

Service accompanying codes first. If warning light remains on after ABS fault is corrected, diagnose problems associated with BRAKE warning light (park brake switch, low fluid, etc.). Code 86 should set only with another ABS code. If Code 86 sets alone, replace ACM.

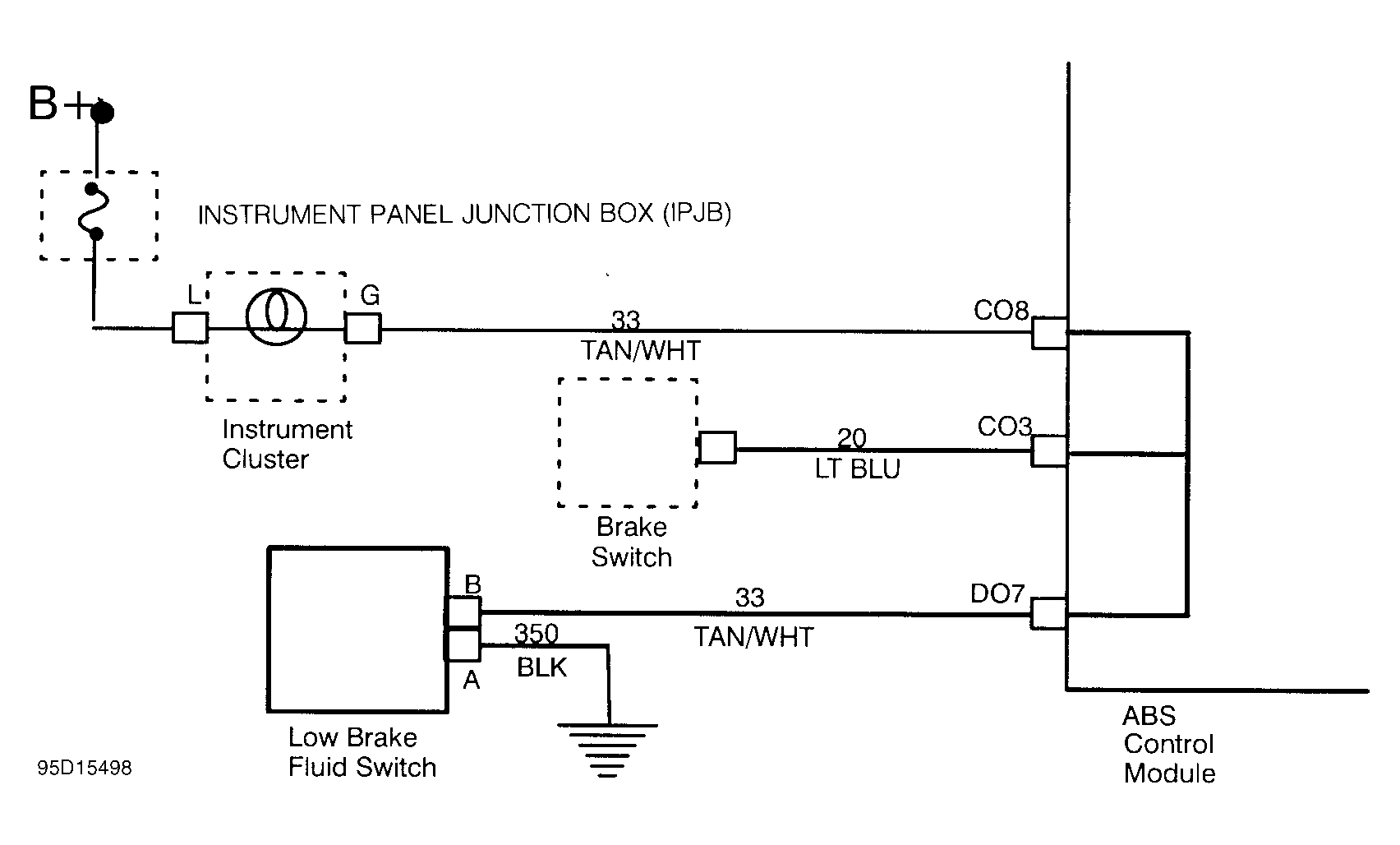

Fig 1: Code 86 Schematic

Courtesy of GENERAL MOTORS CORP.
