Service Information On Lock Cylinder Coding (94-T-50)

Publication date: 1994-11-01
Reference number: 94-T-50

SERVICE INFORMATION ON LOCK CYLINDER CODING

TECHNICAL SERVICE BULLETIN

Reference Number(s): 94-T-50, Date of Issue: November, 1994

SERVICE INFORMATION ON LOCK CYLINDER CODING

Model(s): 1991-1995 Saturns

Group/Seq. No.: General Info-03

Corporation No.: 480104

Bulletin No.: 94-T-50

Date: November, 1994

VEHICLES AFFECTED

1991-1995 Saturns

PURPOSE

Due to a design change in the 1995 ignition lock cylinder, the Saturn key code book supplied by Ilco-Unican for Saturn Retailers as a part of the key cutting equipment has been revised. In 1991-1994 vehicles, the ignition lock cylinder uses tumbler positions 1 through 6. See Fig 1 . In 1995 vehicles, the ignition lock cylinder uses tumbler positions 1 through 7.

NOTE: 1995 vehicle ignition locks require new service part numbers. Refer to chart on the following page for part usages.

In addition, some Saturn key code books supplied to recently opened Retailers have been misprinted in the door code column. The door lock cylinders for 1991-1995 vehicles use tumbler positions 2 through 6. These key code books incorrectly indicate positions 1 through 5 for the door lock cylinder. If any lock cylinder is assembled using the incorrect tumbler positions, the key will not function in the lock.

Revised Saturn key code for 1991-1995 vehicles is included with this mailing. Please distribute this Saturn key code to the appropriate person and discard the Saturn key code you currently have in your retail facility. This will prevent any possibility of the incorrect Saturn key code being used.

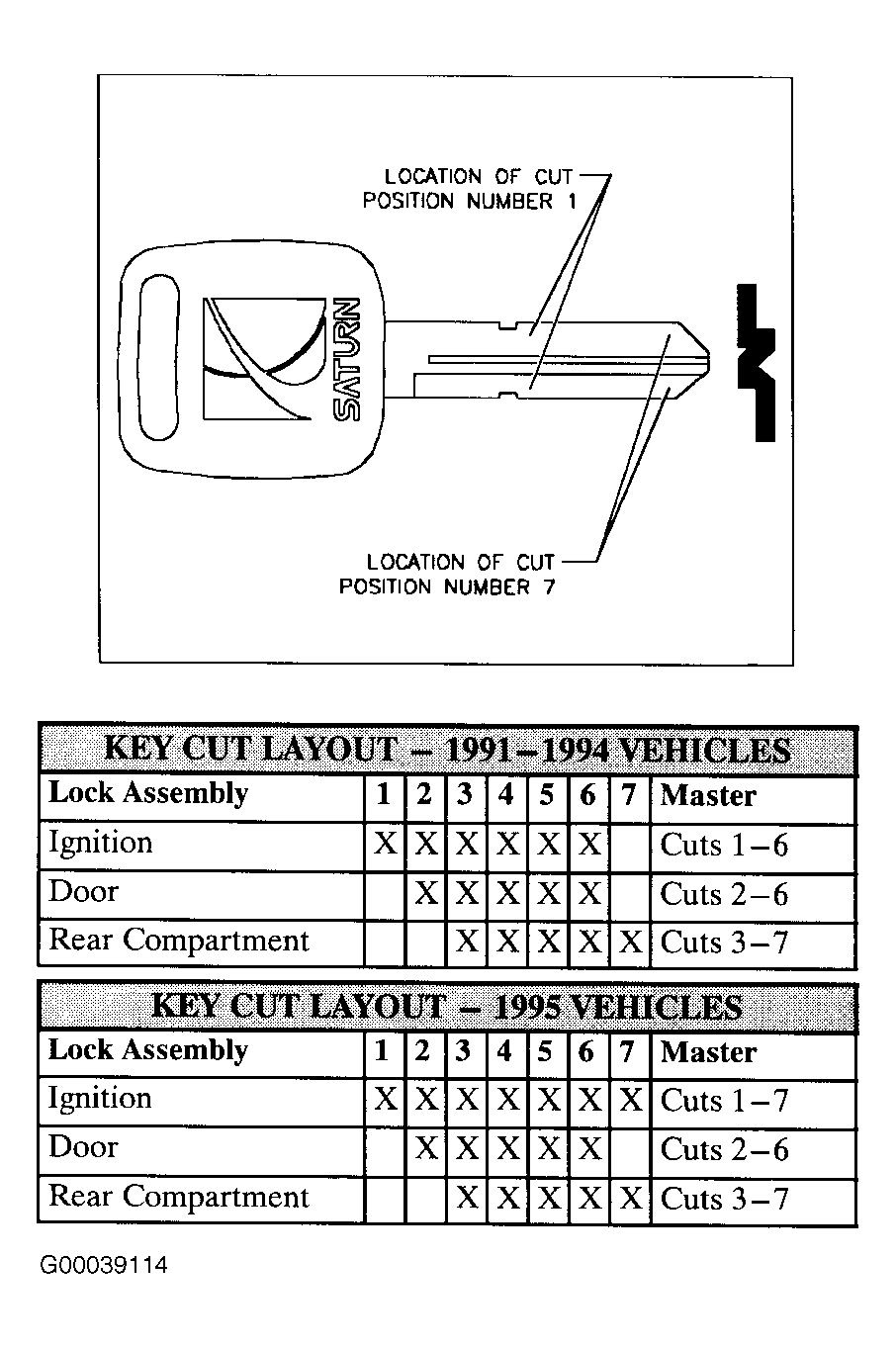

Fig 1: Location of Cut Position Number 1

PARTS INFORMATION

Model/Yr	Part Description	Part No.	Notes
1991-1995	Spring-Ign Lk Pin	21093490	Included with Pkg-Ign Lk Cyl
1991-1995	Pin-Ign Lk Cyl	21093489	Included with Pkg-Ign Lk Cyl
1991-1994	Package-Ign Lk Cyl	21035210	---
1995	Package-Ign Lk Cyl	21051760	---
1991-1995	Bezel-Ign & Start Switch	21044505	Included with Pkg-Ign Lk Cyl
1991-1995	Key Blank	21097305	---
1991-1995	Key Blank Always locate the key blank in the cutter off the tip.	21097940	This part is a running change and will supercede 21097305 when it becomes available.)
Both key blank part numbers can be used on 1991 - 1995 vehicles.
