Removal & Installation

WARNING: This page is about a different car, the 1995 Cadillac Seville, 1995 Cadillac Eldorado, and 1995 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Remove right sound shield. Remove glove box. Remove PCM bracket screws. Position PCM aside to access programmer mounting screws.

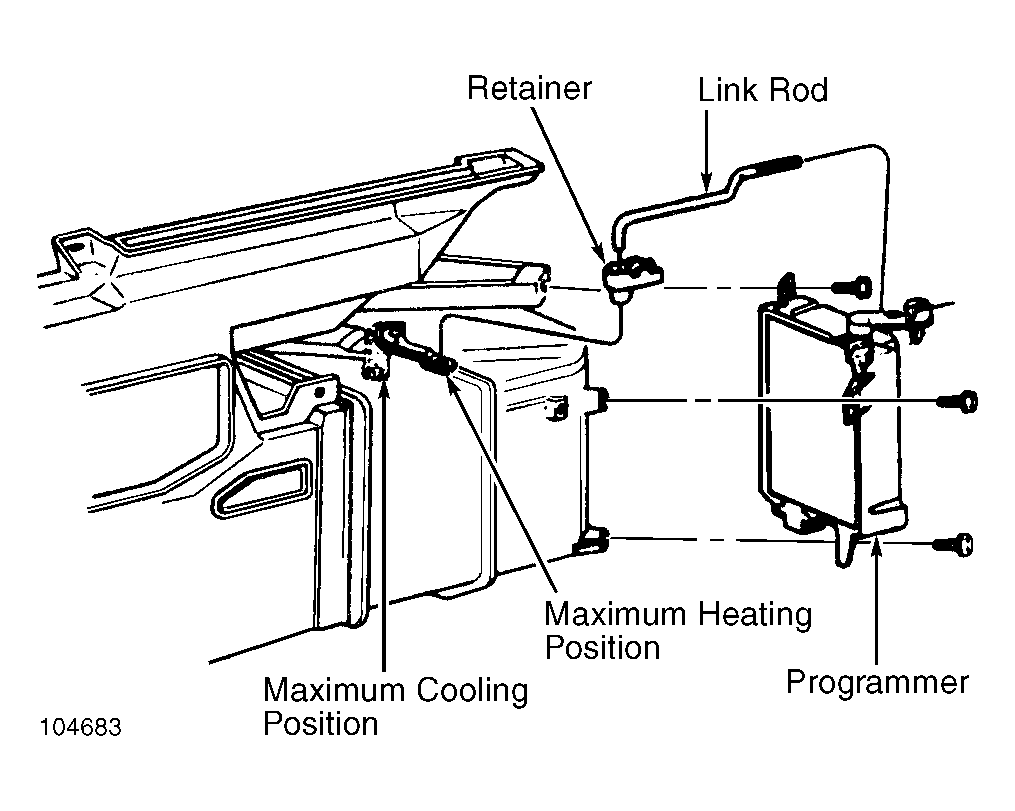

  2. Disconnect link rod from programmer. Unplug programmer electrical and vacuum connectors. Remove programmer. See Figure. To install, reverse removal procedure. Adjust air-mix valve. See AIR-MIX VALVE under ADJUSTMENTS.
