Diagnostic Aids

  1. If Code 82 is set and ACM is not a service replacement part, ACM should be replaced. If Code 82 is set with other codes, service Code 82 first.
  2. Replacement ACM has Code 82 stored in it, and must be reprogrammed with correct ABS calibration and options. Options should be manually set. PCM options must be set correctly or Code 82 will continue to set.

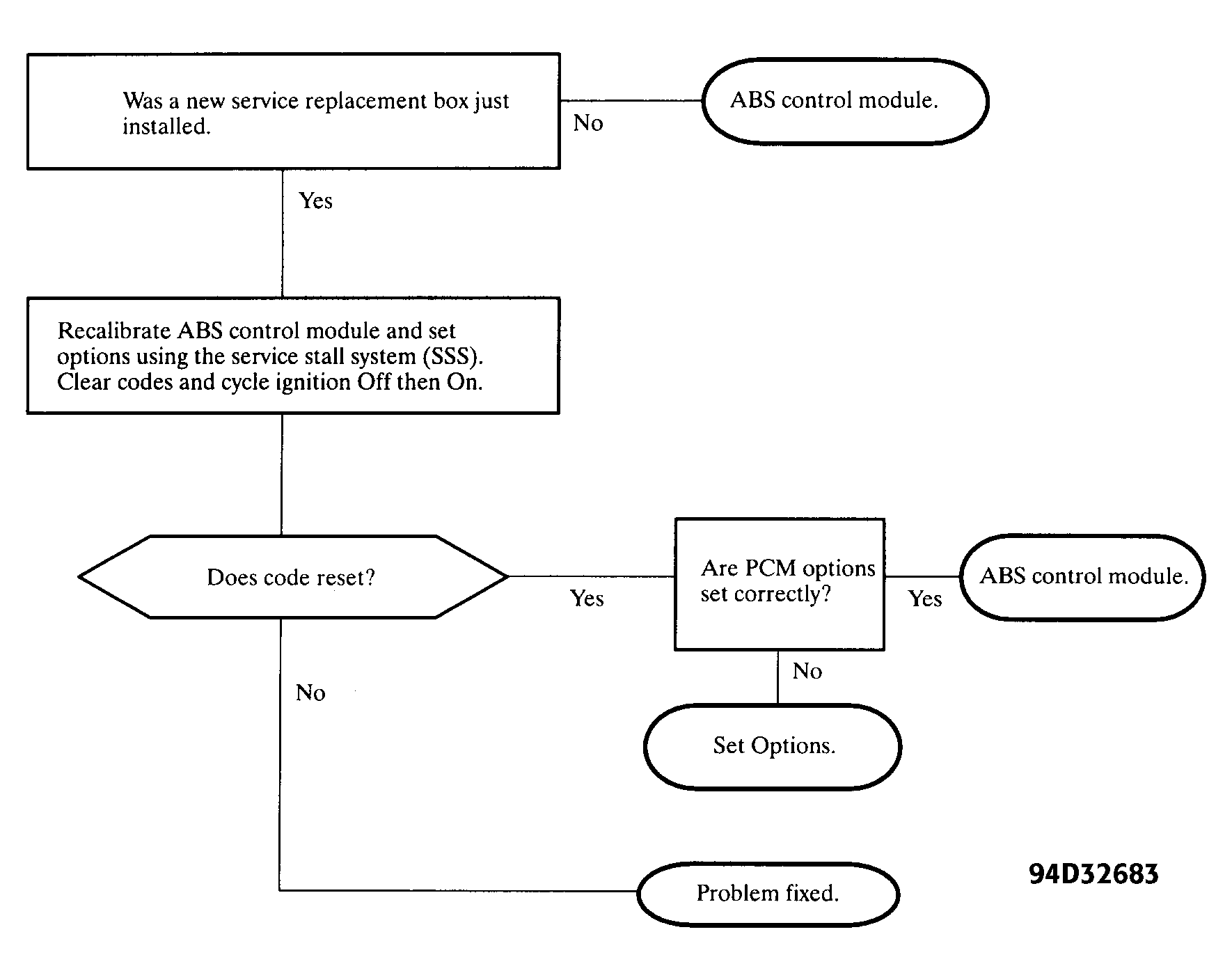

Fig 1: CODE 82 Flow Chart
G94D32683Courtesy of GENERAL MOTORS CORP.
