Home >> Saturn >> 1994 >> SL >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belts - Automatic >> Wiring Diagrams

Wiring Diagrams

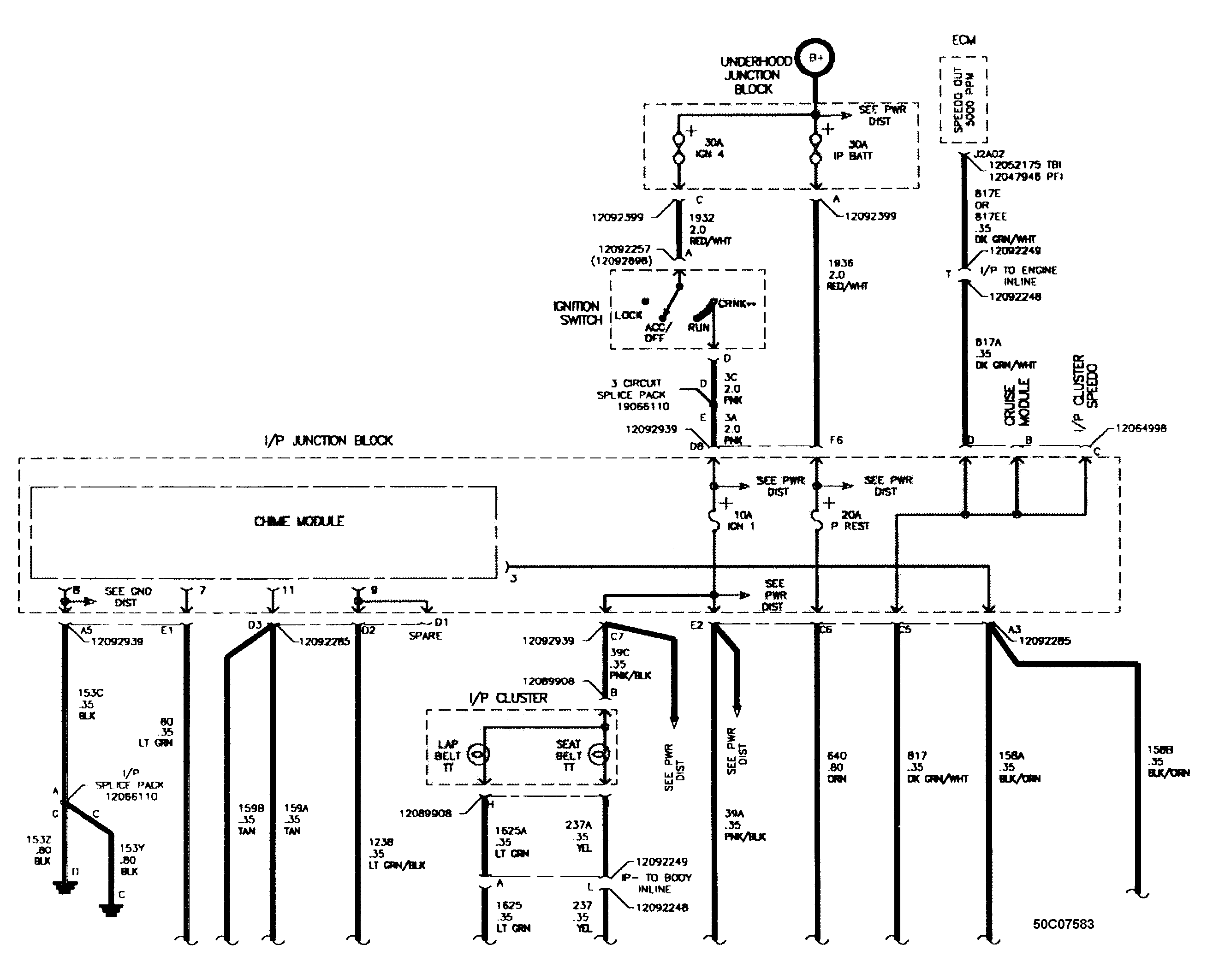

Fig 1: Wiring Diagram (1 of 2) Print For Best Results

G50C07583

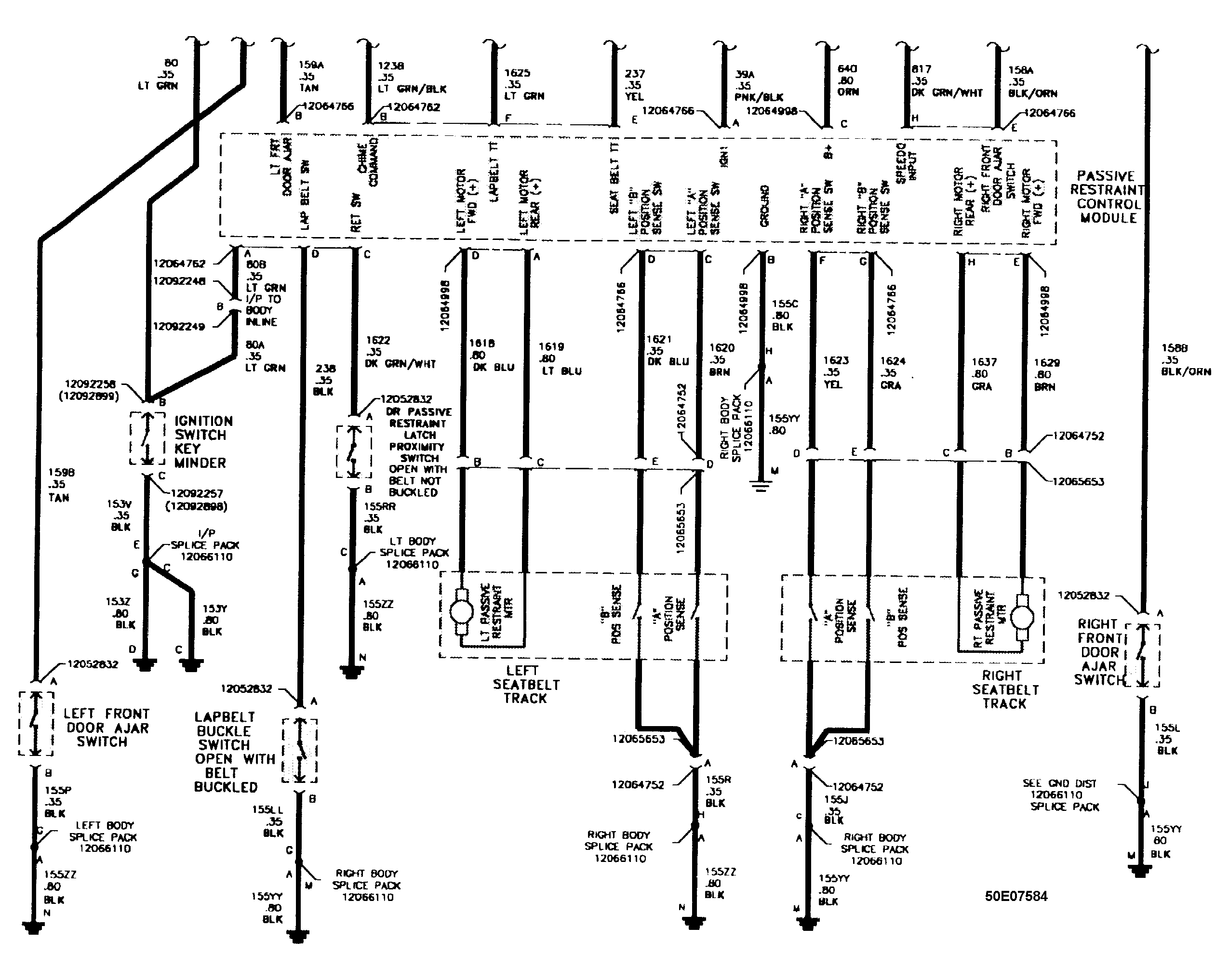

Fig 2: Wiring Diagram (2 of 2) Print For Best Results

G50E07584
