Home >> Saturn >> 1994 >> SL >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belts - Automatic >> Diagnosis

Seat Belts - Automatic: Diagnosis

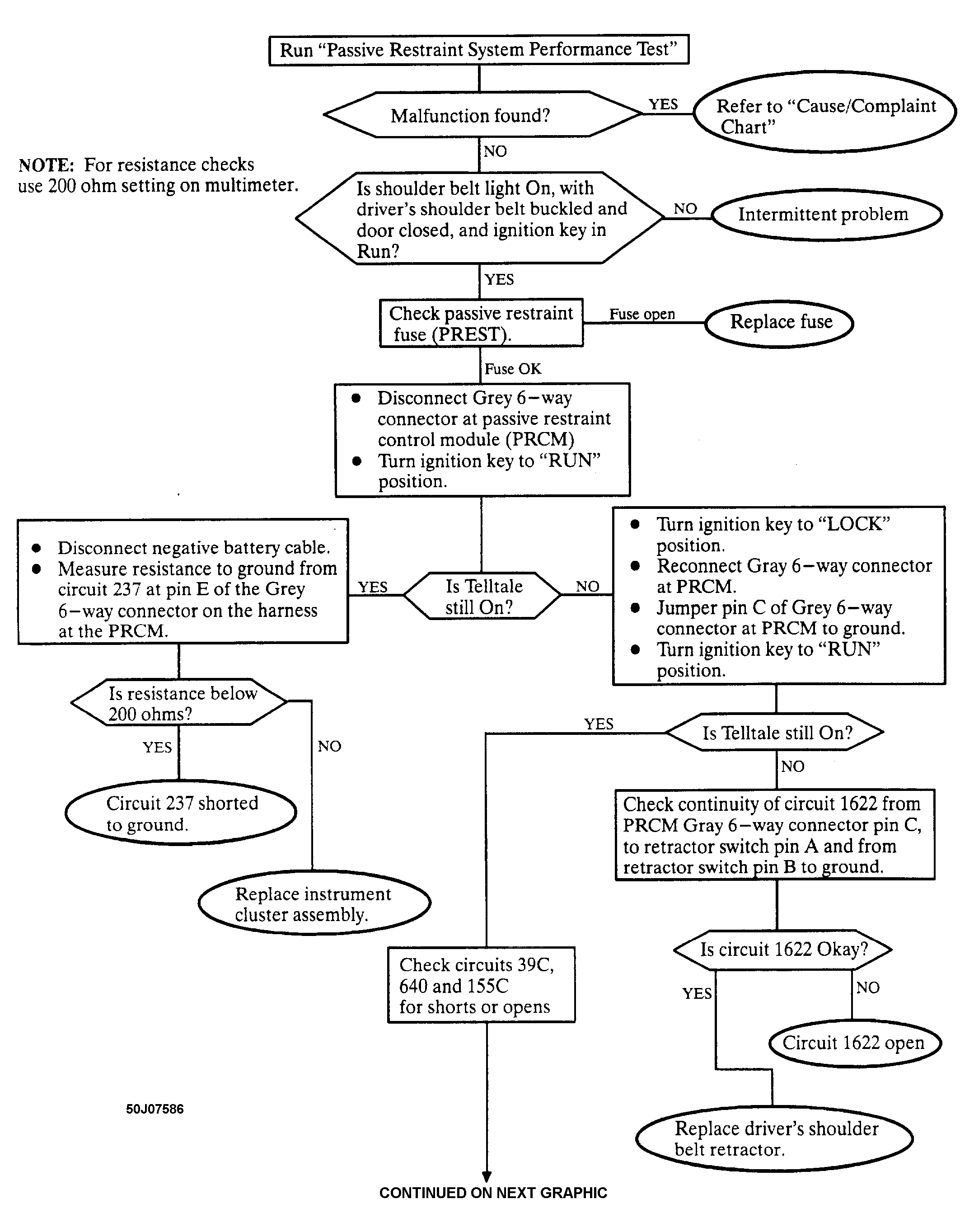

Fig 1: Passive Restraint Diagnosis Chart (1 of 3)

G50J07586

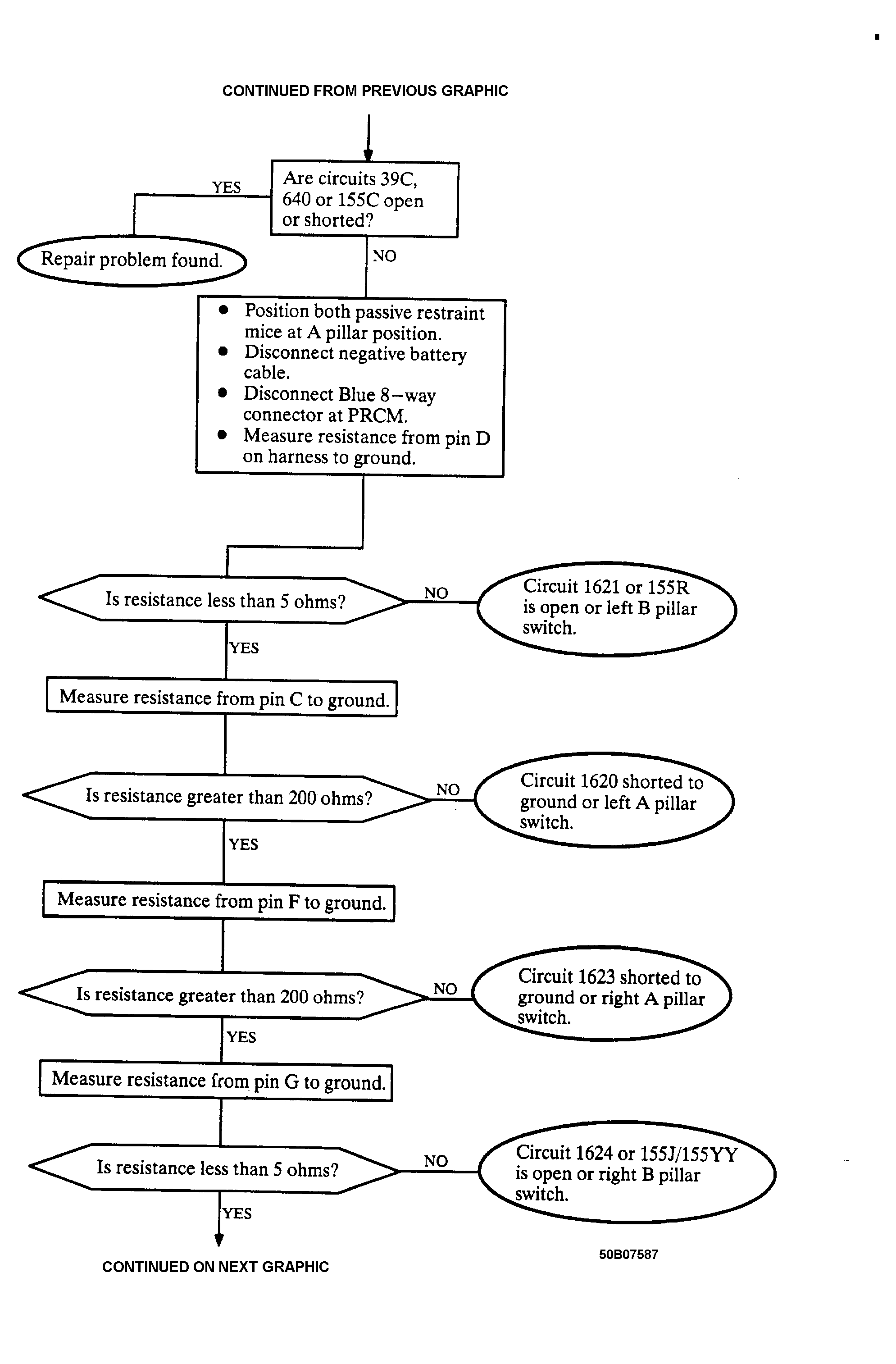

Fig 2: Passive Restraint Diagnosis Chart (2 of 3)

G50B07587

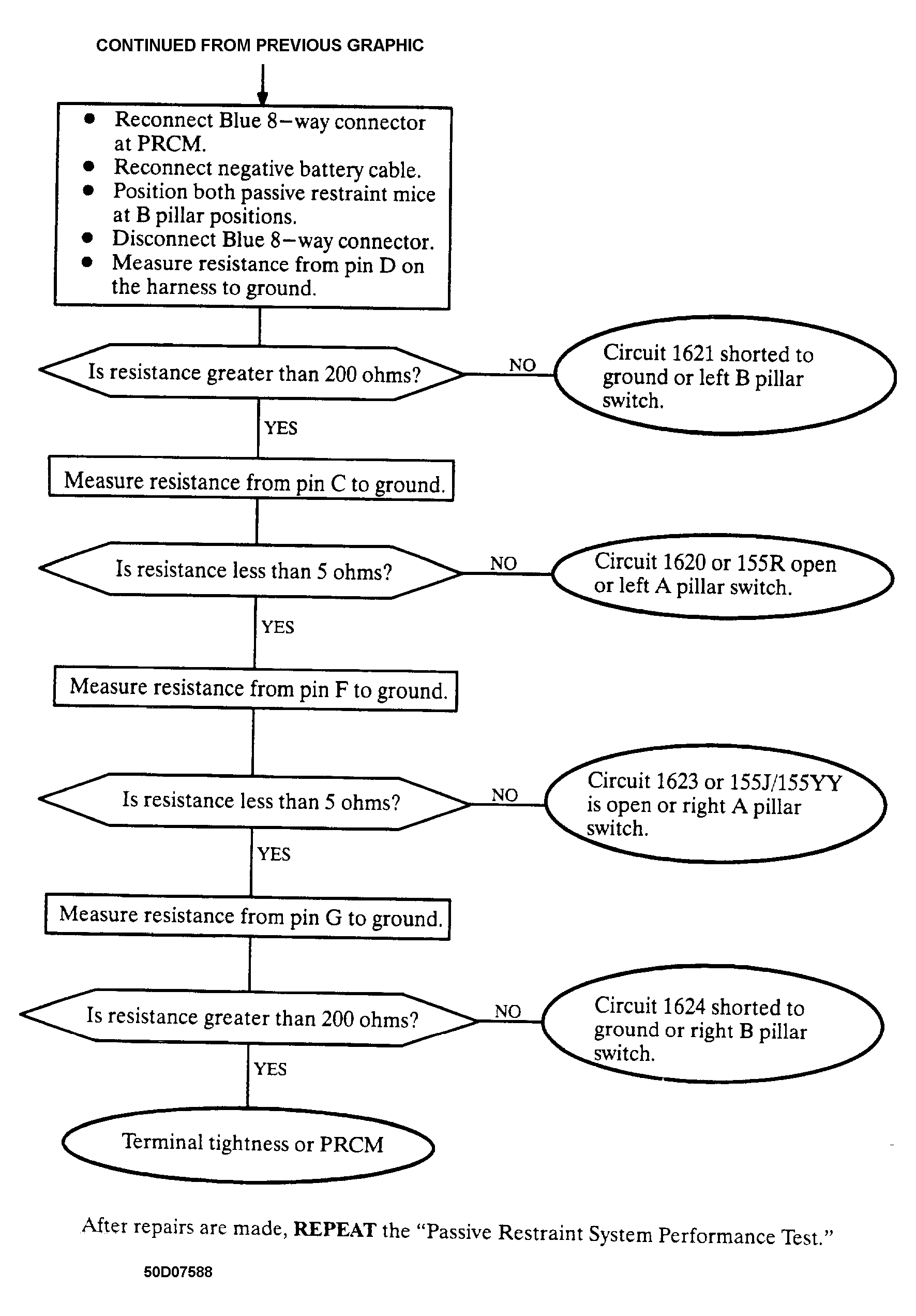

Fig 3: Passive Restraint Diagnosis Chart (3 of 3)

G50D07588
