Chime Module: Removal

  1. Remove drivers side close out panel, to expose instrument panel junction block.

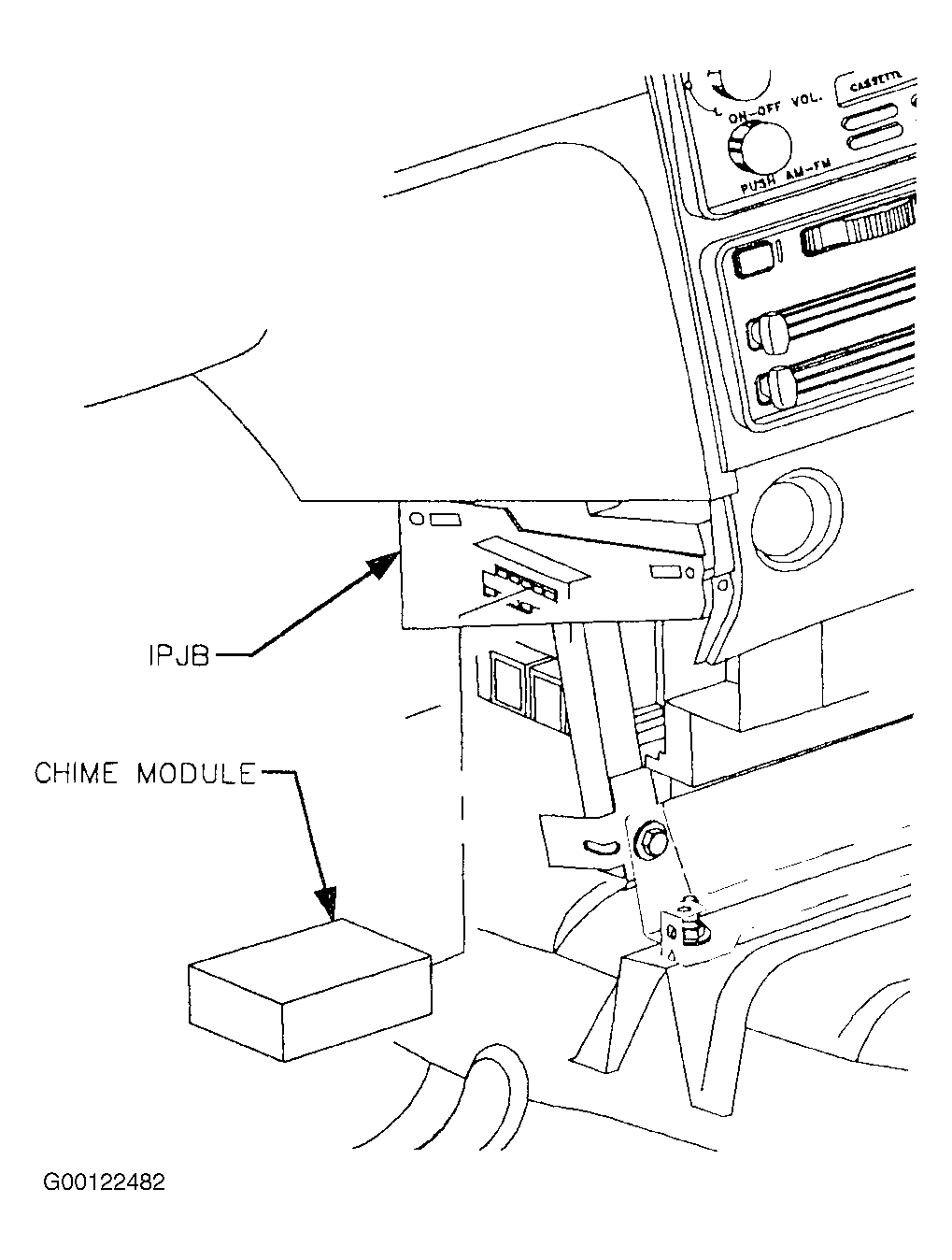

  2. Press lock tab on chime module to release connector from instrument panel chime module. See Figure .
  3. Carefully pull out chime module.
