Disassembly (Fuel Meter Assembly)

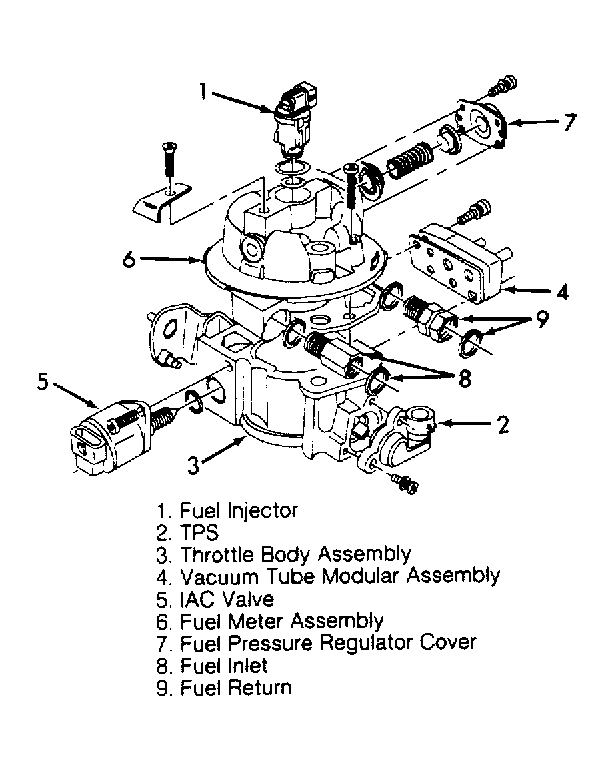

Remove fuel meter-to-throttle body retaining screws. Remove fuel meter assembly. See Figure. Remove and discard gasket. If fuel pressure regulator cover is removed, replace regulator diaphragm to prevent fuel leaks. Remove TP sensor and IAC valve. Throttle valve screws are staked in position and should not be removed.
