Diagnostic Aids

If Code 82 is set, recalibrate ACM, using Service Stall System (SSS). Replace ACM if Code 82 resets. If Code 82 is set with other codes, service Code 82 first.

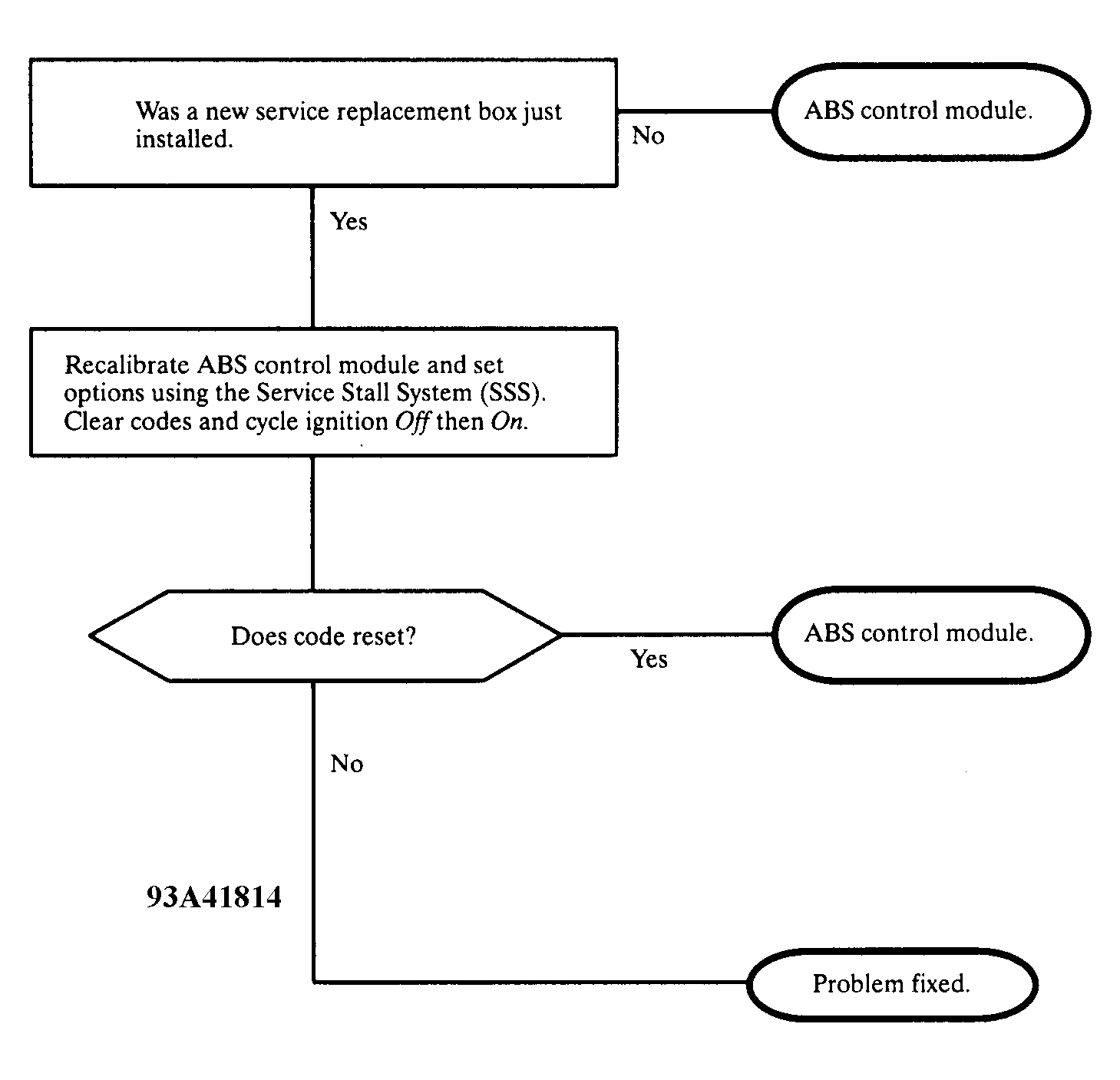

Fig 1: Code 82 - Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
