Engine Controls - Tests W/Codes - 1.9L TBI
>>
Pcm/BCM Code Charts
>>
Code 26: Quad-Driver CKT
>>
Component Resistances:
Component Resistances:
EGR Solenoid; 28.8-35.2 ohms.
Canister Purge Solenoid; 28.8-35.2 ohms.
Coolant Fan Relay; 72-88 ohms.
A/C Relay; 72-88 ohms.
Fig 1: Code 26, Schematic, Quad-Driver Ckt

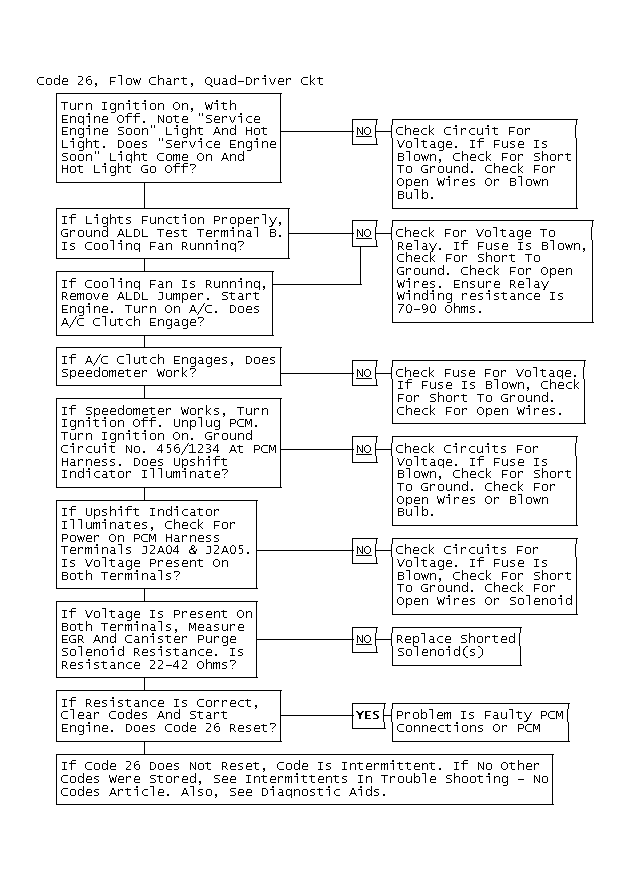

Fig 2: Code 26, Flow Chart, Quad-Driver Ckt
