Outside Power Mirror Motor: Installation

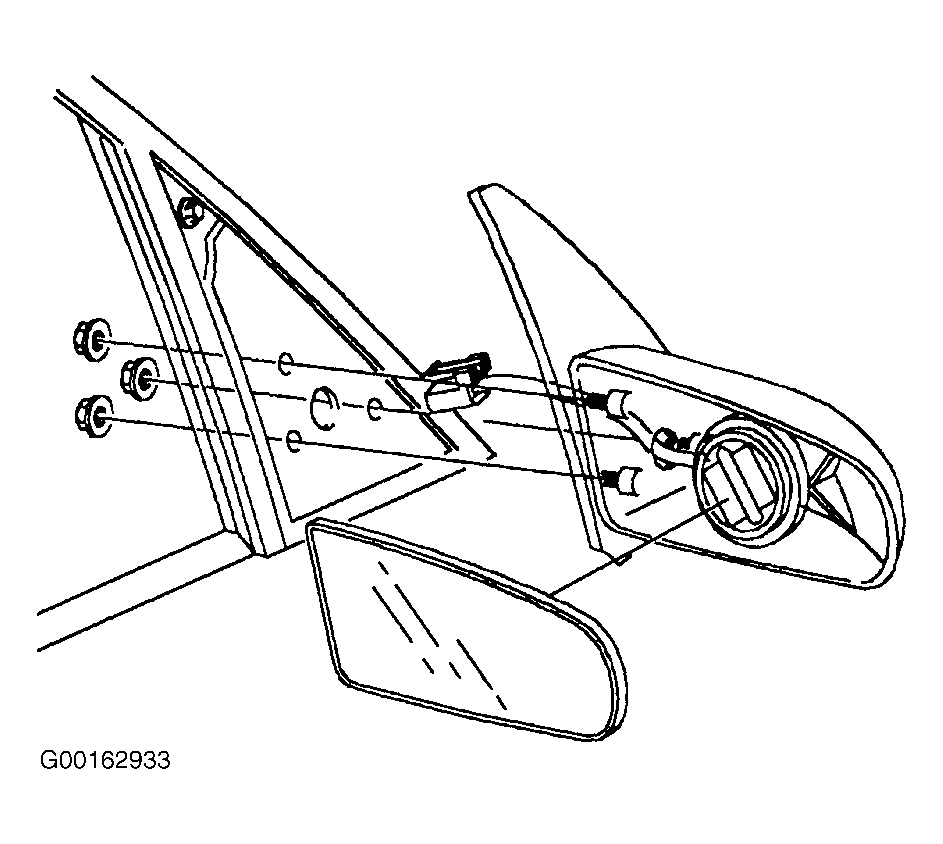

  1. Connect electrical connector and seat grommet. See Figure
  2. Install foam filler.
  3. Install motor. See Figure
  4. Install screws and tighten. See Figure
  5. Snap mirror glass assembly onto motor. See RIGHT OUTSIDE MANUAL/POWER MIRROR GLASS
  6. Install trim cover. See Figure
  7. Connect negative battery cable.
