Wiring Diagrams

NOTE: Body ground M is below right front seats. Instrument panel fuse/relay block is also know as I/P junction block.

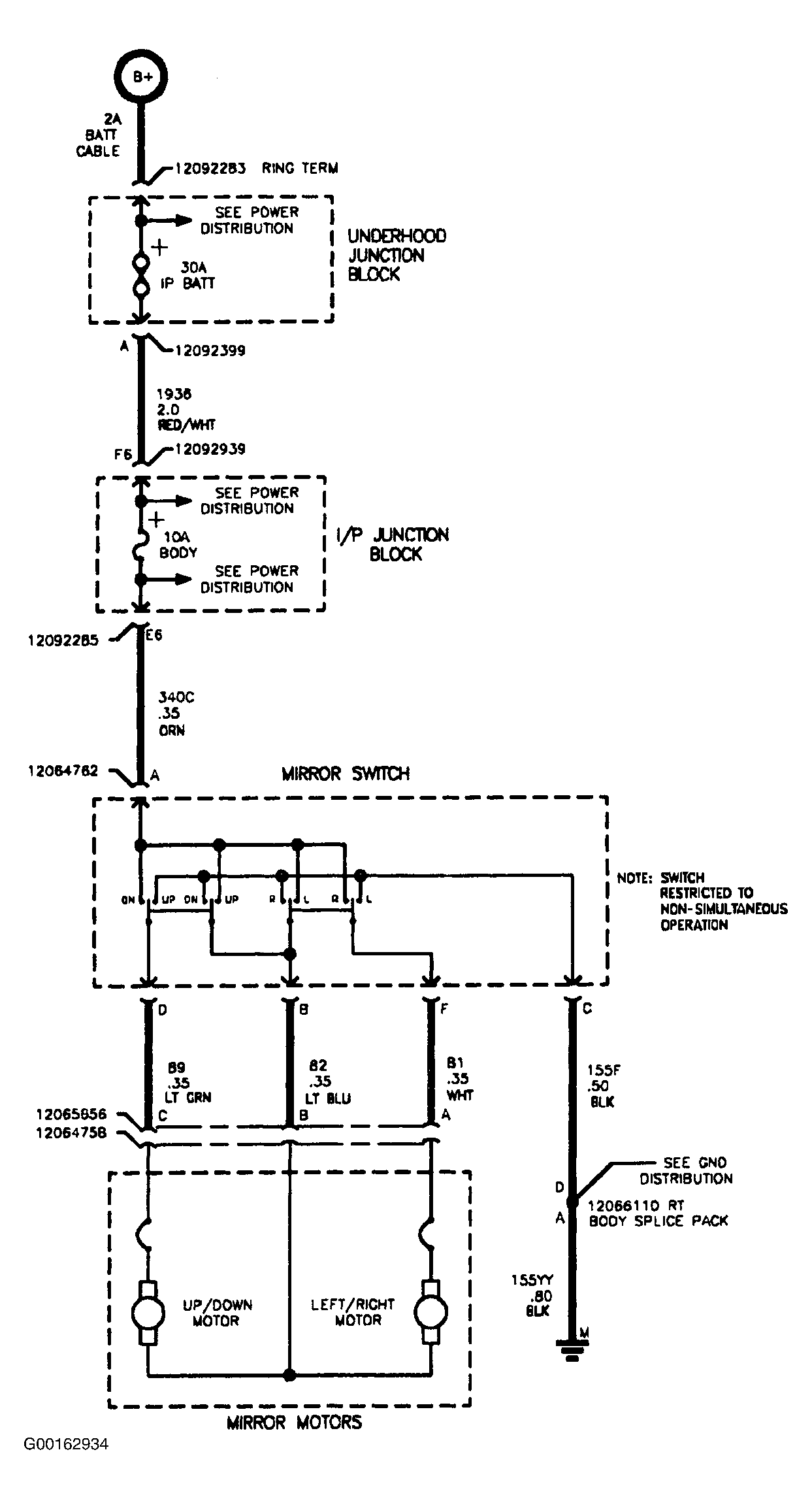

Fig 1: Wiring Diagram (1991-1992 "S" Series)

Courtesy of GENERAL MOTORS CORP.
