Outside Mirror: Installation
- Install seal on mirror assembly.

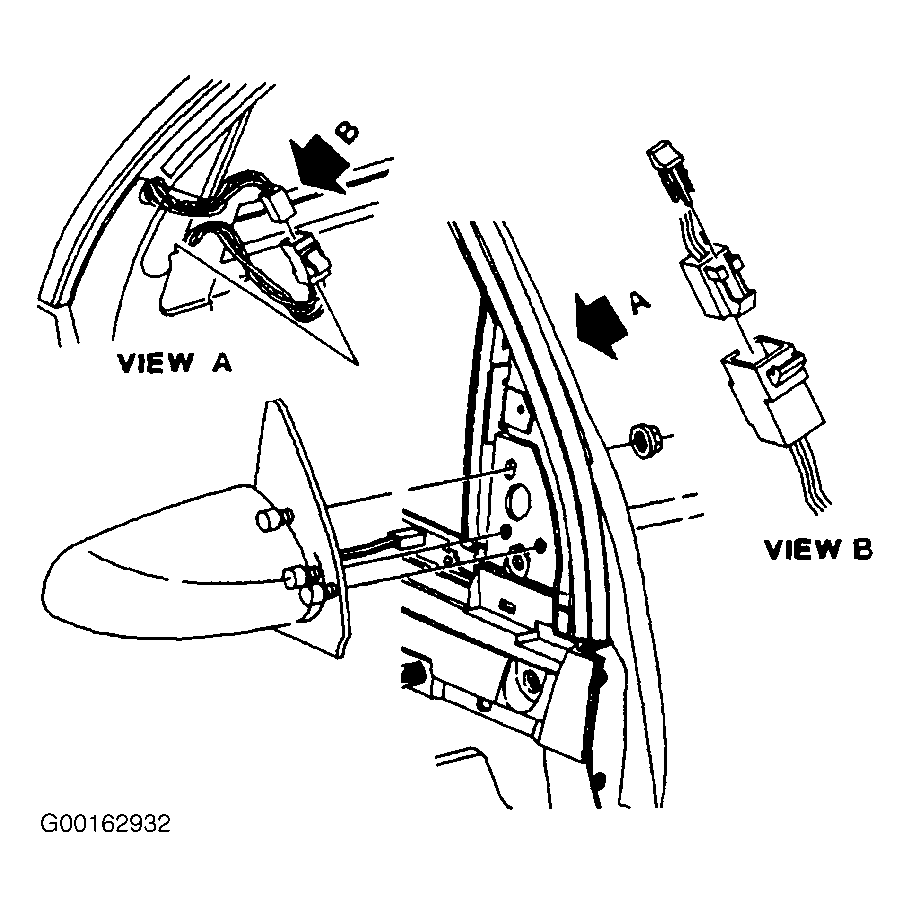

- If equipped with right-hand side electrical mirror, connect electrical connector. See Fig 1
- Install mirror assembly to door, install nuts and tighten. See Fig 1
and TORQUE SPECIFICATIONS
- Connect harness on power mirror.
- Install foam filler to door frame.
- Install mirror cable into trim panel and tighten Allen Screw Set on manual mirror. See Fig 1
and TORQUE SPECIFICATIONS
- Install trim panel to door frame with screw and tighten. See Fig 1
Courtesy of GENERAL MOTORS CORP.
