Diagnostic Aids

If Code 82 is set, recalibrate ABS module, using Service Stall System (SSS). Replace ABS control module if Code 82 resets. If Code 82 is set with other codes, service Code 82 first.

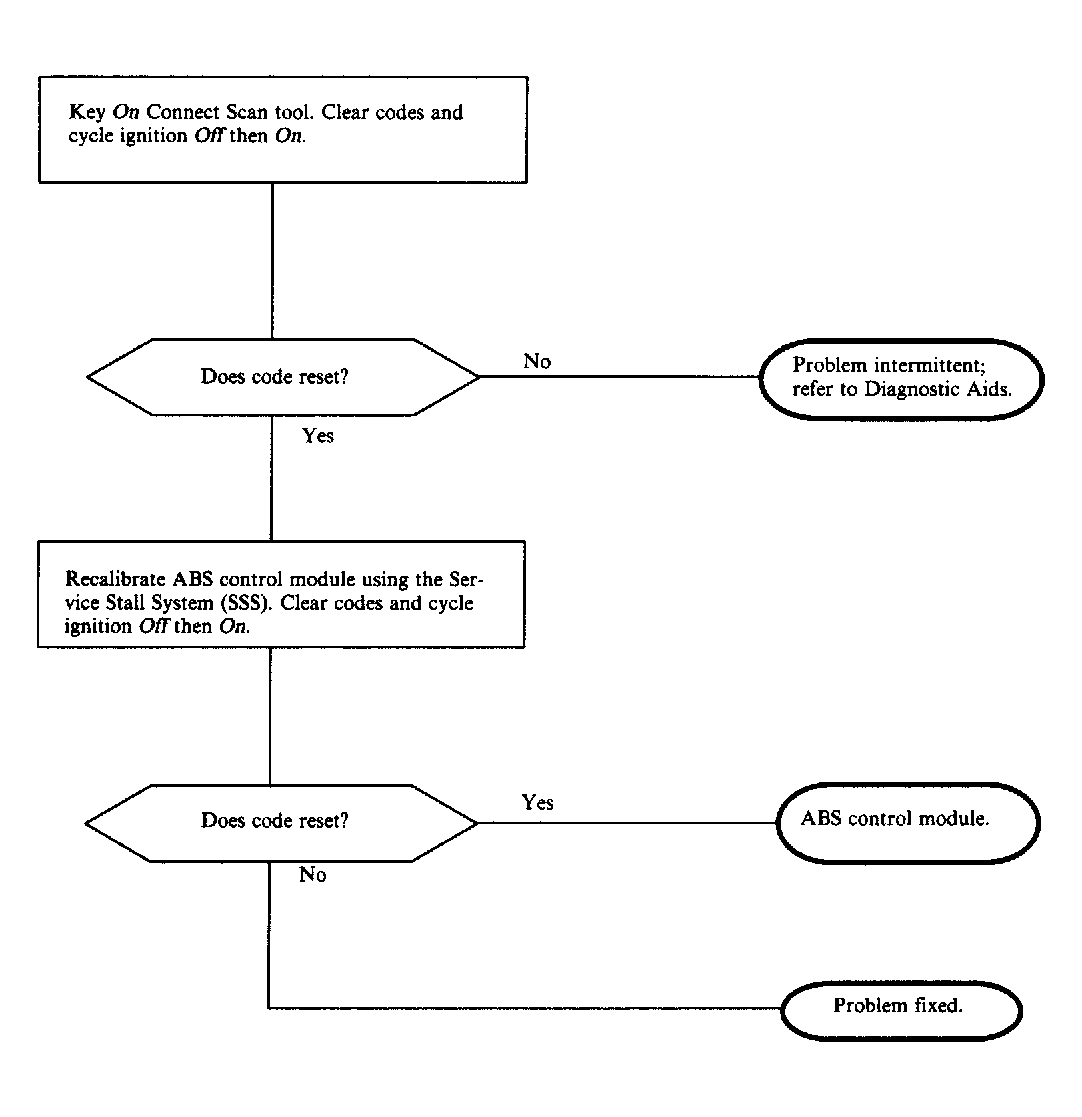

Fig 1: Code 82 Flow Chart - ABS Calibration Fault

Courtesy of GENERAL MOTORS CORP.
