Clutch Assembly Replacement: Assemble

NOTE: Lettering "transmission side" faces the transmission.
- Do not tighten bolts yet.
- For a clearer representation, the illustration shows clutch without DT-6263 remover and installer.
Attach clutch disc and thrust plate to flywheel.

Centre thrust plate and clutch plate with centering drift and remover and installer DT-6263-30 (1).

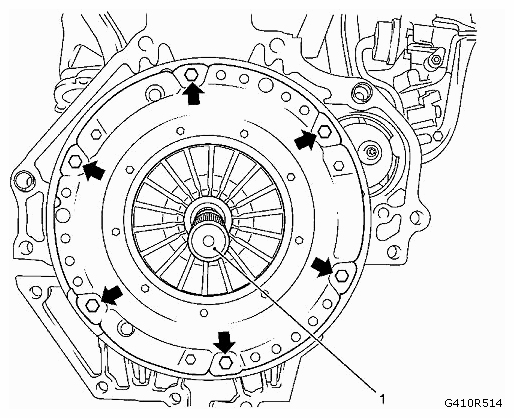

Fig 1: Locating Thrust Plate And Clutch Plate With Centering Drift Fasteners
Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Tighten fastener crosswise.

Attach thrust plate to flywheel and turn DT-6263 remover and installer (1) clockwise to the stop.

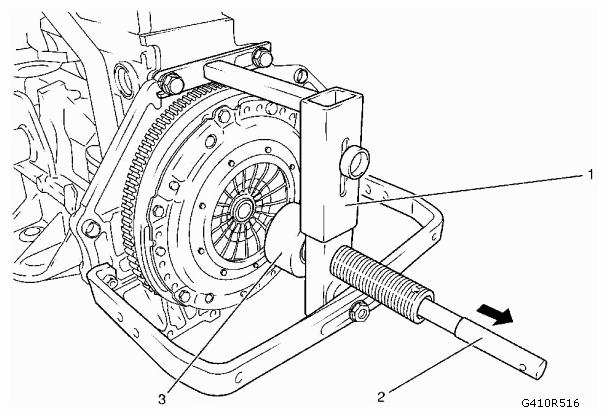

Fig 2: Turning DT-6263 Remover And Installer Clockwise
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Tighten the trust plate - fastener M7 to 15 Nm (11 lb ft) .
- Tighten the trust plate - fastener M8 to 22 Nm (16 lb ft) .
Detach DT-6263 remover and installer (1) from engine block.

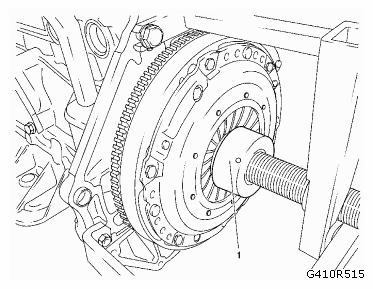

Fig 3: Disconnecting DT-6263 Remover And Installer From Engine Block
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Turn DT-6263 remover and installer (3) counter-clockwise to the stop.
- Detach centering drift and remover and installer DT-6263-30 (2).
- Remove 4x fastener DT-6263 remover and installer on engine block.
Install the transmission. Refer to TRANSMISSION REPLACEMENT (FWD, LBS/A20DTH) , TRANSMISSION REPLACEMENT (FWD, LHU/A20NFT) , TRANSMISSION REPLACEMENT (AWD, LHU/A20NFT) , TRANSMISSION REPLACEMENT (ALL WHEEL DRIVE - LBY/A20DTR) or TRANSMISSION REPLACEMENT (FRONT WHEEL DRIVE - LBY/A20DTR) .
