Transmission Rear Mount Replacement

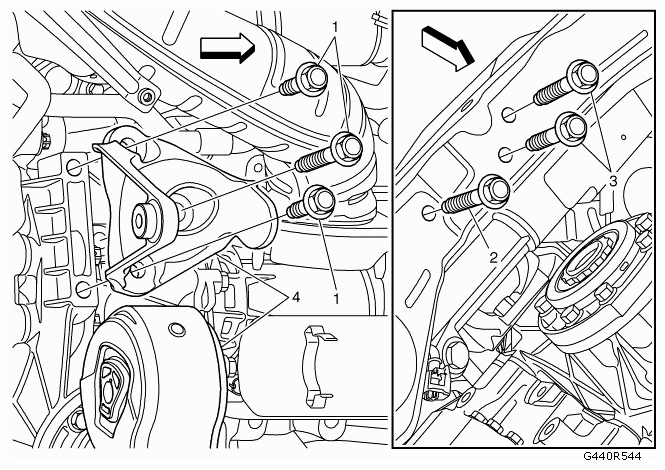

Fig 1: Identifying Transmission Rear Mount With Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the engine shield. Refer to ENGINE SHIELD REPLACEMENT . All Wheel Drive (AWD): Lower the subframe approx. 10 cm. Refer to SUBFRAME, REPLACE (GNA) or SUBFRAME, REPLACE (GNB) .
1	Transmission Rear Mount Fastener (Qty: 3) Refer to FASTENER CAUTION . Tighten 100 Nm (74 lb ft)
2	Transmission Rear Mount Fastener Tighten 62 Nm (46 lb ft)
3	Transmission Rear Mount Fastener (Qty: 2) Tighten 100 Nm (74 lb ft)
4	Transmission Rear Mount
