Power, Ground, Serial Data, and Traction Control: Notes

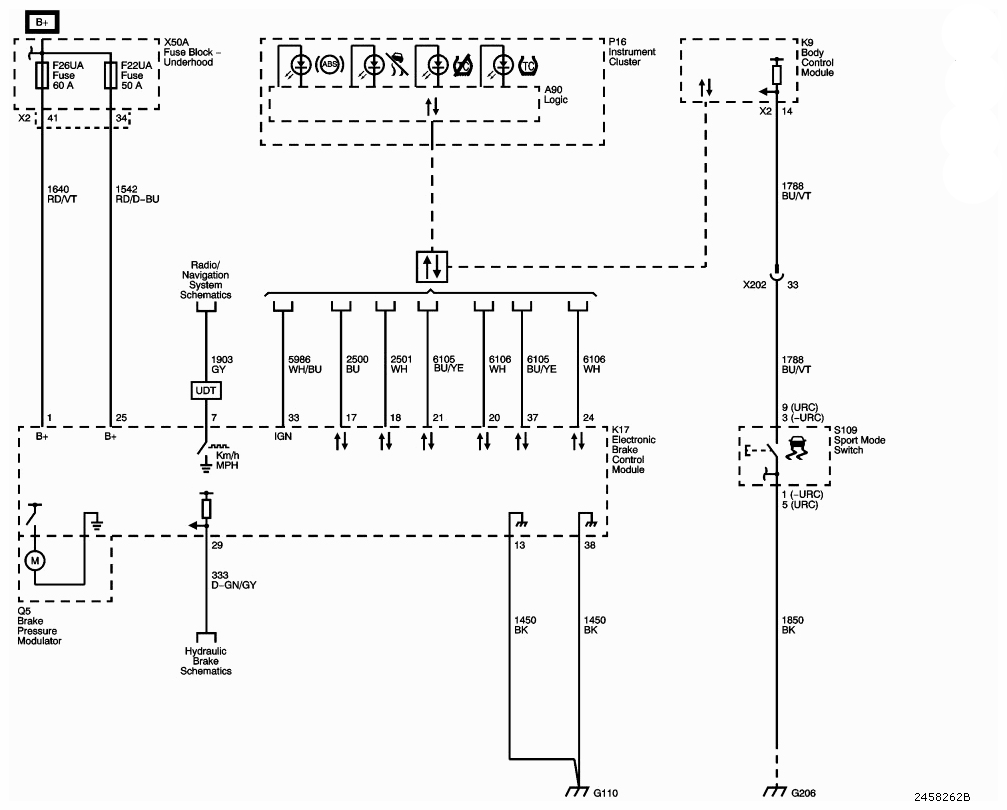

Fig 1: Power, Ground, Serial Data And Traction Control - Wiring Diagram

G09437434

Courtesy of SAAB-SCANIA OF AMERICA, INC.
