Steering Wheel Position Sensor Replacement

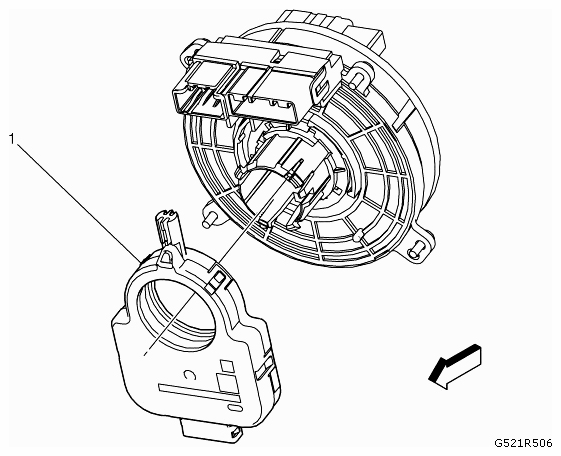

Fig 1: Identifying Steering Wheel Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the steering wheel inflatable restraint module coil. Refer to STEERING WHEEL INFLATABLE RESTRAINT MODULE COIL REPLACEMENT .
1	Steering Wheel Position Sensor Procedure  Press in the clip on the inflatable restraint steering wheel module clock-spring coil to remove the sensor. After installation, center the steering angle sensor. Refer to STEERING ANGLE SENSOR CENTERING .
