Front Wheel Speed Sensor Replacement (GNB)

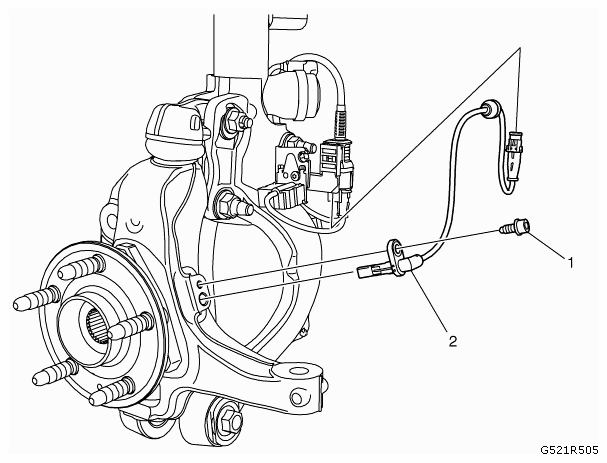

Fig 1: Identifying Front Wheel Speed Sensor And Mounting Bolt (GNB)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
1	Speed Sensor Bolt Refer to FASTENER CAUTION . Tighten  9 Nm (80 lb in)
2	Front Wheel Speed Sensor Procedure  Disconnect the wire connection and remove the front wheel speed sensor from the steering gear knuckle.
