Joining Method Field

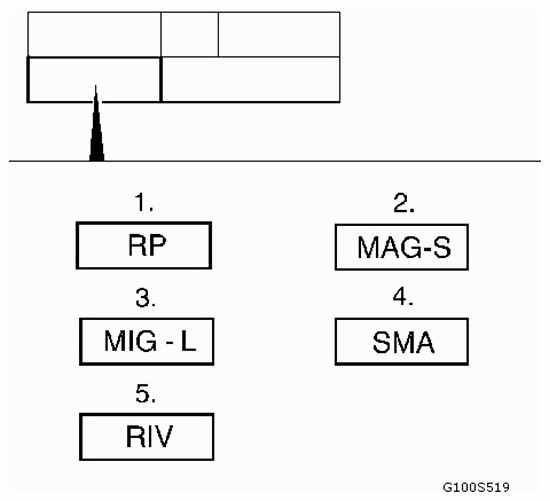

Fig 1: Joining Method Field
G09406724Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Description
1 Resistance Spot Welding
2 MIG/MAG Welding
3 Gas-shielded MIG brazing
4 Structural Metal Adhesive
5 Rivets
