Turbocharger System Description: Notes

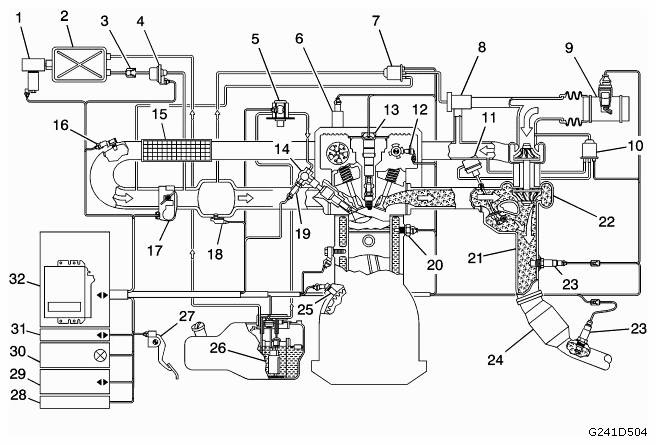

Fig 1: Turbocharger System Description

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Evaporative Emission (EVAP) Canister Vent Solenoid Valve
2. EVAP Canister
3. Non-Return Valve
4. EVAP Canister Purge Solenoid Valve
5. High Pressure Fuel Pump
6. Camshaft Position Actuator Solenoid Valve
7. Turbocharger Bypass Solenoid Valve
8. Turbocharger Bypass Valve
9. Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
10. Turbocharger Wastegate Regulator Solenoid Valve
11. Turbocharger Wastegate Diaphragm Valve
12. Camshaft Position Sensor
13. Ignition Coil/Module and Spark Plug
14. Fuel Injector
15. Charge Air Cooler
16. Intake Air Pressure and Temperature Sensor
17. Throttle Body
18. Manifold Absolute Pressure (MAP) Sensor
19. Fuel Rail Pressure Sensor
20. Engine Coolant Temperature (ECT) Sensor
21. Exhaust Manifold
22. Turbocharger
23. Heated Oxygen Sensor (HO2S) 1 and 2
24. Catalytic Converter
25. Crankshaft Position Sensor
26. Fuel Pump Module
27. Accelerator Pedal
28. Theft Deterrent
29. Data Link Connector (DLC)
30. Malfunction Indicator Lamp (MIL)
31. GMLAN Serial Data
32. Engine Control Module (ECM)
