Fuel Tank Pressure Sensor Replacement

Callout	Component Name
WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby. WARNING: Use care while handling the fuel sender to prevent damage and incorrect fuel level readings. Preliminary Procedure Disconnect the negative battery terminal. Refer to BATTERY NEGATIVE CABLE REPLACEMENT (GASOLINE) . Remove the fuel tank. Refer to FUEL TANK REPLACEMENT (AWD) or FUEL TANK REPLACEMENT (FWD) .
1	Fuel Tank Pressure Procedure Disconnect the electrical connector.

Callout

Component Name

WARNING: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.

WARNING: Use care while handling the fuel sender to prevent damage and incorrect fuel level readings.

Preliminary Procedure

Disconnect the negative battery terminal. Refer to BATTERY NEGATIVE CABLE REPLACEMENT (GASOLINE) .
Remove the fuel tank. Refer to FUEL TANK REPLACEMENT (AWD) or FUEL TANK REPLACEMENT (FWD) .

Fuel Tank Pressure
Procedure
Disconnect the electrical connector.

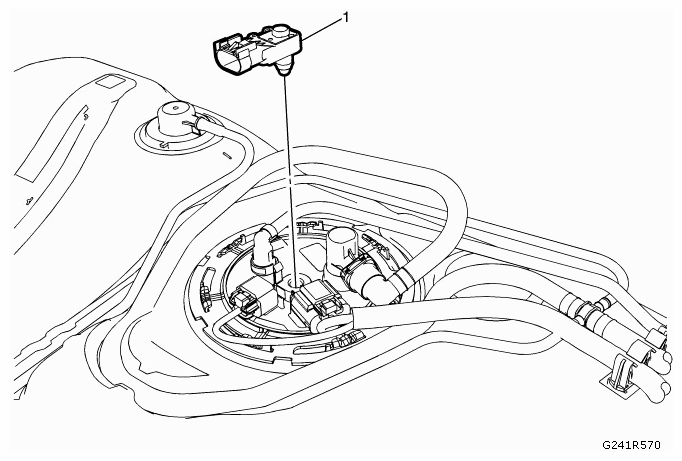

Fig 1: Disconnecting Electrical Connector

Courtesy of SAAB-SCANIA OF AMERICA, INC.
