Home >> Saab >> 2011 >> 9-5 Turbo4, Standard >> Repair and Diagnosis >> Electrical >> Horns >> Lighting And Signaling Systems >> Wiring diagram >> Exterior Lights, Controls >> Notes

Exterior Lights, Controls: Notes

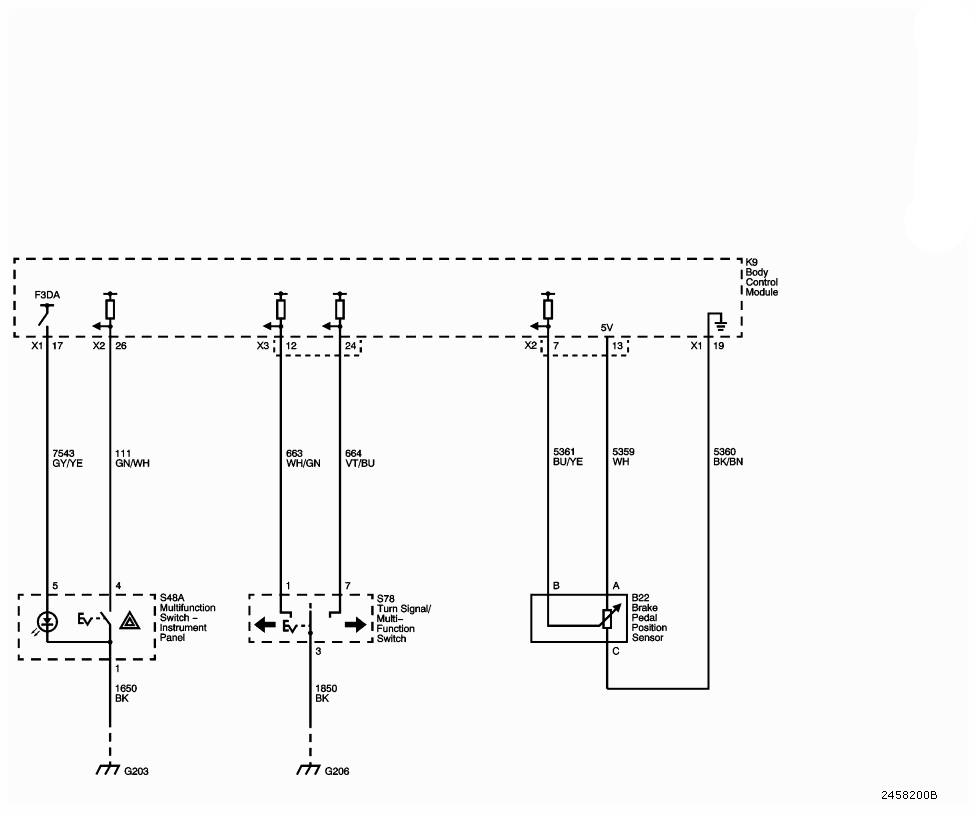

Fig 1: Exterior Lights And Controls - Wiring Diagram

G09435227

Courtesy of SAAB-SCANIA OF AMERICA, INC.
