Installation Procedure

Cut the rear rail sectioning in corresponding locations to fit the remaining original panel. The sectioning joint should be trimmed to allow a gap of one-and-one-half-times the metal thickness at the sectioning joint.

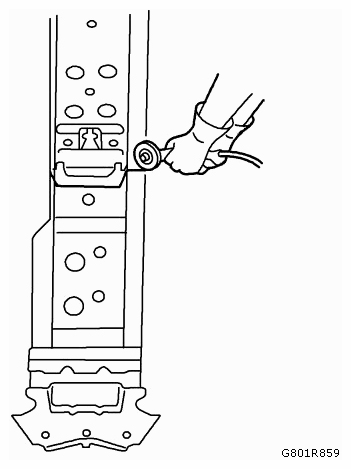

Fig 1: Cutting Rear Rail Sectioning
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Clean and prepare the attaching surfaces for welding.
Position the rear rail sectioning on the vehicle.

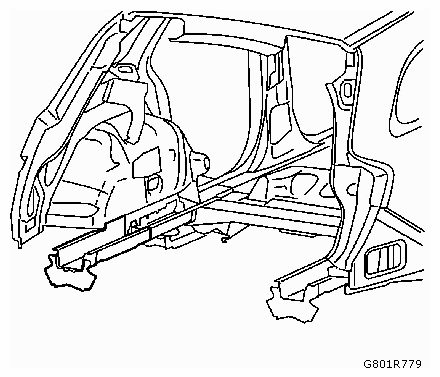

Fig 2: Positioning Rear Rail Sectioning On Vehicle
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Verify the fit of the rear rail sectioning.
Clamp the rear rail sectioning into position.
NOTE: Refer to WELDED, BRAZED, AND RIVETED JOINT SPECIFICATIONS .

Spot weld (2) the rear rail sectioning accordingly.

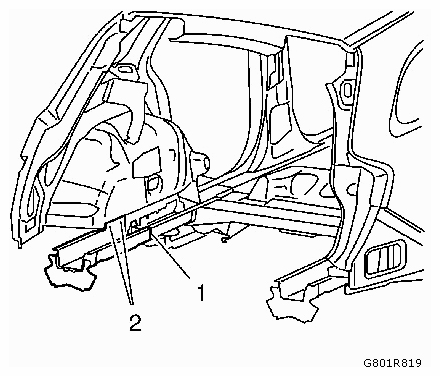

Fig 3: Identifying Spot Weld And MIG-Braze Rear Rail Sectioning
Courtesy of SAAB-SCANIA OF AMERICA, INC.
MIG-braze (1) the rear rail sectioning.
Grind MIG brazed seams
Apply the sealers and anti-corrosion materials to the repair area, as necessary. Refer to ANTI-CORROSION TREATMENT AND REPAIR (BASE) or ANTI-CORROSION TREATMENT AND REPAIR (CORROSION PROTECTION) .
Install the rear compartment floor panel sectioning. Refer to REAR FLOOR PANEL REPLACEMENT .
Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
Enable the SIR system. Refer to SIR DISABLING AND ENABLING .
