Front Fender Replacement

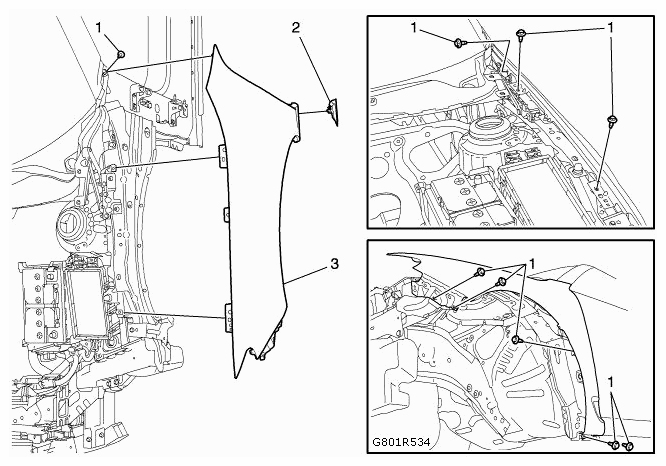

Fig 1: Identifying Front Fender Air Grille And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT . Remove the headlamp. Refer to HEADLAMP REPLACEMENT . Remove the front wheelhouse front liner. Refer to FRONT WHEELHOUSE FRONT LINER REPLACEMENT . Remove the front wheelhouse rear liner. Refer to FRONT WHEELHOUSE REAR LINER REPLACEMENT . Remove the body hinge pillar lower insulator.
1	Front Fender Fastener (Qty: 9) Refer to FASTENER CAUTION . Procedure Use a grease pencil to mark the alignment of the fender before removing the fastener. Tighten 9 Nm (80 lb in)
2	Front Fender Air Grille Procedure Release front fender air grille retainer. Use a small flat bladed tool in the corner to remove front fender air grille.
3	Front Fender Procedure Pull gently to remove the fender. Transfer parts as needed. Align the fender after installing as needed.
