Audio System With Navigation: Wiring diagram: UE1: Notes

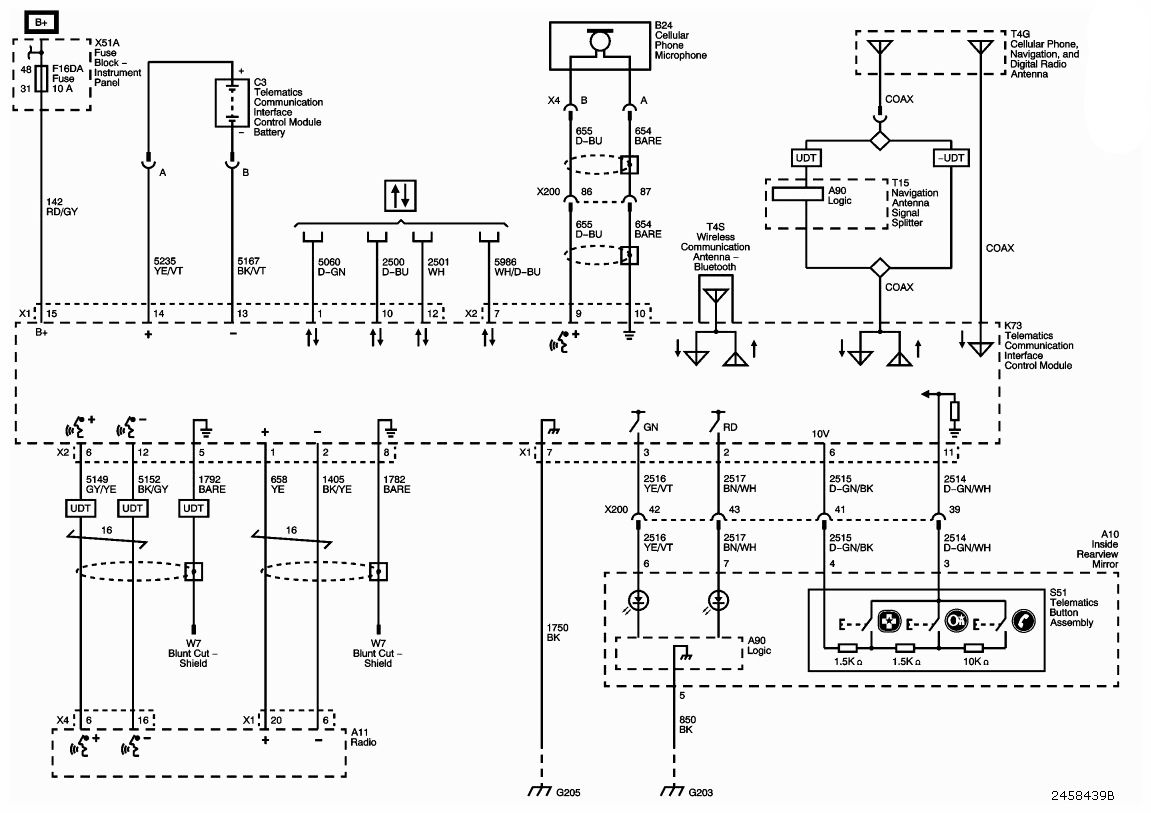

Fig 1: UE1 - Wiring Diagram

G09435337

Courtesy of SAAB-SCANIA OF AMERICA, INC.
