Navigation Display (UDT): Notes

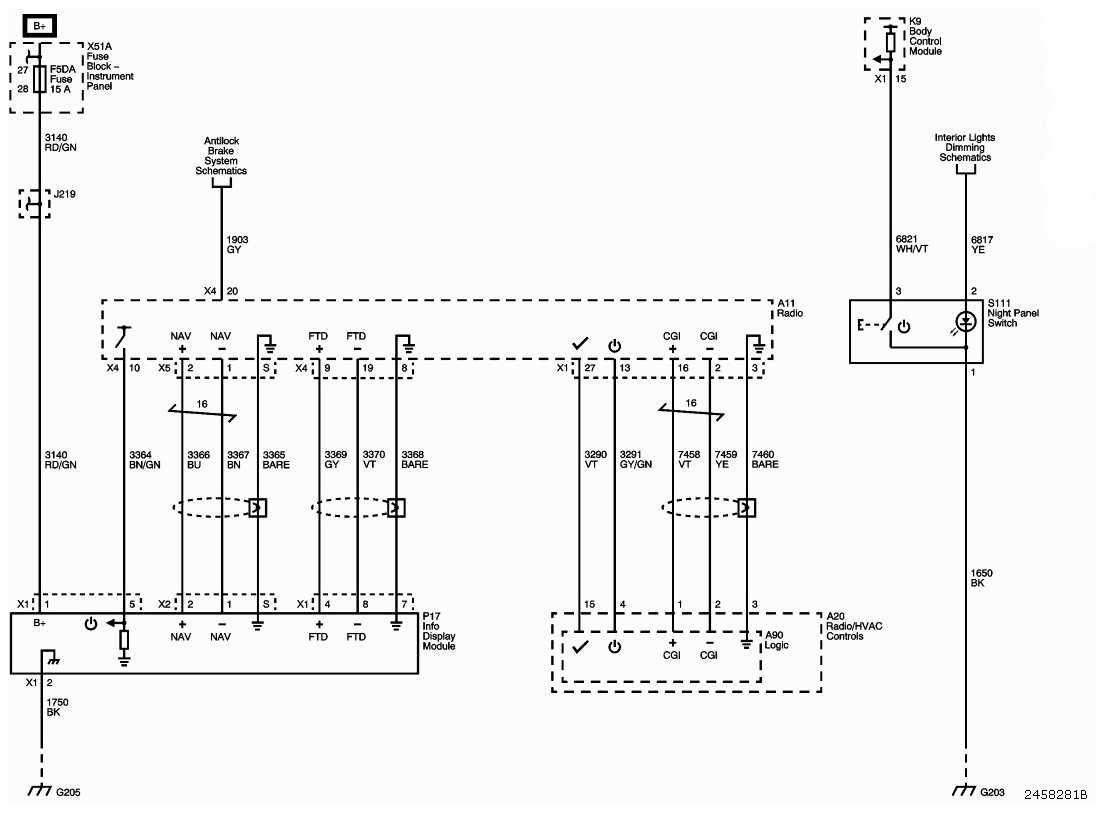

Fig 1: Navigation Display - Wiring Diagram (UDT)

G09435330

Courtesy of SAAB-SCANIA OF AMERICA, INC.
