Radio speaker amplifier bracket, replace 4D

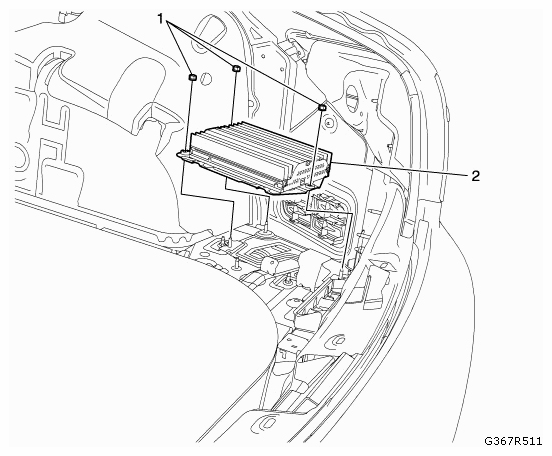

Fig 1: Identifying Radio Speaker Amplifier And Fastener

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the rear compartment side trim panel. Refer to REAR COMPARTMENT SIDE TRIM PANEL REPLACEMENT .
1	Radio Speaker Amplifier Fastener (Qty: 3) See FASTENER CAUTION . Tighten  9 Nm (80 lb in)
2	Radio Speaker Amplifier Procedure  Disconnect the electrical connectors. For programming and set up information, refer to CONTROL MODULE REFERENCES .
