Engine Front Cover Disassemble

WARNING: This page is about a different variant/trim than selected.

Special Tools

EN 45000 Seal Remover

Remove the crankshaft front oil seal from the engine front cover using the EN 45000 remover.

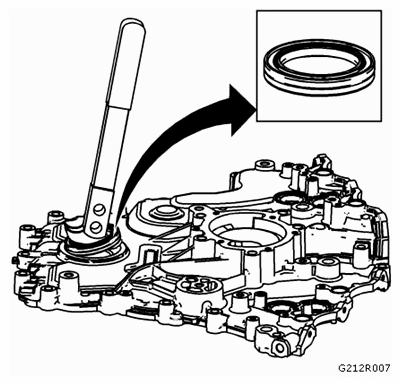

Fig 1: Removing Crankshaft Front Oil Seal From Engine Front Cover Using Tool
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the camshaft position actuator valve oil seals from the engine front cover.

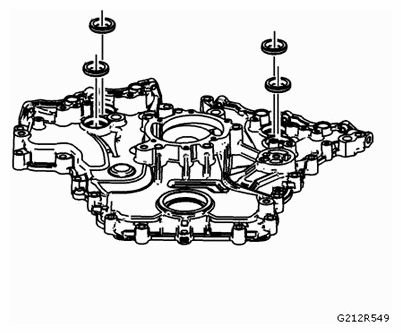

Fig 2: Identifying Camshaft Position Actuator Valve Oil Seals
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the water pump seal from the engine front cover.

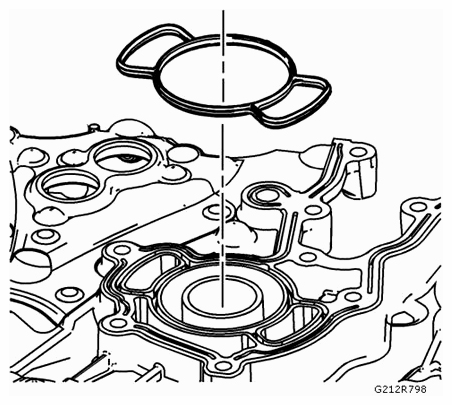

Fig 3: Identifying Water Pump Seal
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Discard the water pump seal.
