Spark Plug Replacement: Notes

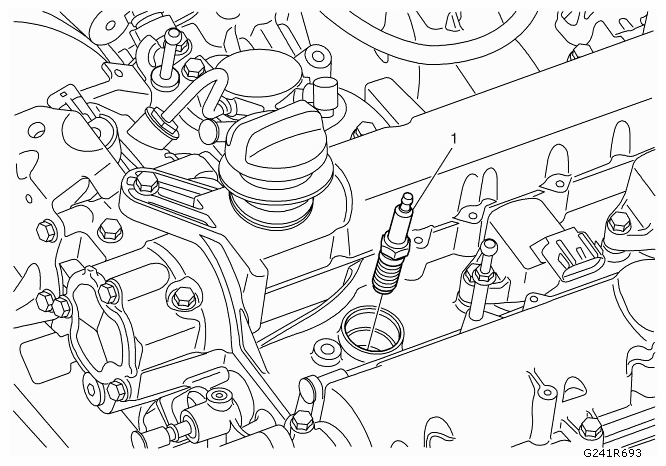

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the ignition coil. Refer to IGNITION COIL REPLACEMENT . |
|
| 1 | Spark Plug Refer to FASTENER CAUTION . Tighten 20 Nm (15 lb ft) |
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the ignition coil. Refer to IGNITION COIL REPLACEMENT . |
|
| 1 | Spark Plug Refer to FASTENER CAUTION . Tighten 20 Nm (15 lb ft) |
