Engine Support Fixture (Front Side)

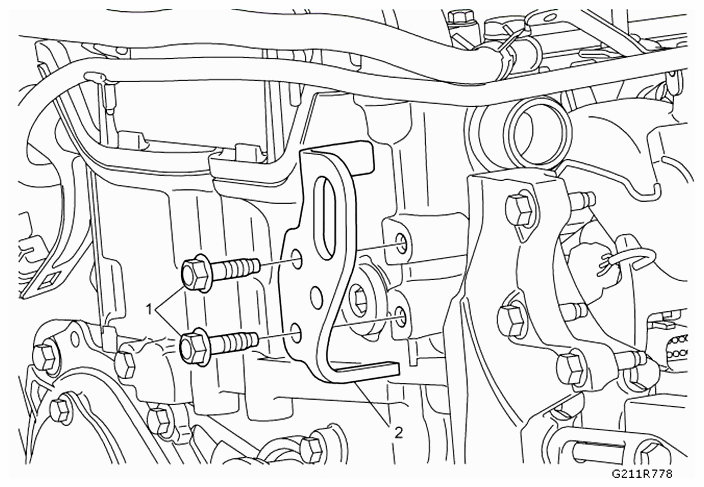

Fig 1: Removing Engine Support Fixture (Front Side)
G09406875Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
Preliminary Procedure
Remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT .
1 Engine Support Fixture Fastener (Qty: 2)
Refer to FASTENER CAUTION .
Tighten
25 Nm (18.4 lb ft)
2 Engine Support Fixture
